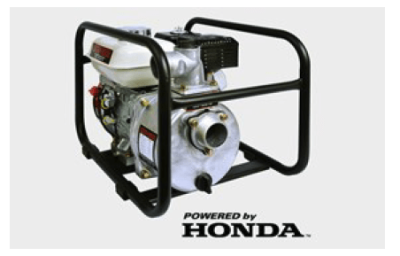

4RLAG-2H Aluminum Water Transfer Pump (Honda Engine) (617056)

request a quote

APPLICATIONS
Ideal for general purpose use in high volume liquid transfer and contractor de-watering applications

FEATURES

  • Powered by commercial grade Honda GX120 engine
  • Durable cast iron semi-open style impeller
  • Lightweight aluminum outer casing: includes heavy-duty roll frame
  • Self-priming to 25′ of suction lift
  • Built-in check valve
  • EPA certified
  • Repair kits available
Click to rate this post!
[Total: 2 Average: 5]

Exploded Part

exploded-parts

REPLACEMENT PARTS

exploded-parts

If you are looking for a new pump. 4RLAG-2H (617056) is replaced with 6RLAG-2LST.Replacement Parts for 4RLAG-2H (617056) are still available. Red Lion, 6RLAG-2LST Aluminum Engine Driven Semi-trash Pump W/LCT Engine 208 cc, 2 Inch MNPT w/Roll Frame Model # 6RLAG-2LST Item # 617034 Red Lion’s engine-driven Semi-Trash pump handles various liquid slurries including sand, pebbles, and suspended solids less than 1/2″ in diameter

ITEM # Description KIT GROUP ID* PART #

1

4RLAG-2H Adapter

A

617326

2

4RLAG-2H O-ring, 218mm NBR

A

617326

B

617305

F

617315

3

4RLAG-2H Mechanical seal

B

617305

F

617315

4

4RLAG-2H Impeller

F

617315

5

4RLAG-2H Volute casing

F

617315

6

4RLAG-2H Volute packing

B

617305

F

617315

7

4RLAG-2H Pump casing

A

617326

8

4RLAG-2H Gasket

C

617345

9

4RLAG-2H Discharge flange

C

617345

10

4RLAG-2H Flapper

C

617345

11

4RLAG-2H Suction flange

C

617345

12

4RLAG-2H O-ring, 25.5mm NBR

C

617345

D

617331

13

4RLAG-2H Cap plug

C

617345

D

617331

14

4RLAG-2H Roll frame

E

617356

INTRODUCTION 4RLAG-2H ( 617056)

This is an engine-driven transfer pump for use in general de-watering applications and is suitable for pumping clear water. Do not use the pump in applications where sewage or any other debris (gravel, sand, floating debris, etc.) or corrosives are present. This instruction sheet provides you with the information required to safely own and operate your product. Retain these instructions for future reference. The product you have purchased is of the highest quality workmanship and material, and has been engineered to give you long and reliable service. This product has been carefully tested, inspected, and packaged to ensure safe delivery and operation. Please examine your item(s) carefully to ensure that no damage occurred during shipment. If damage has occurred, please contact the place of purchase. They will assist you in replacement or repair, if required.

APPLICATION

Use this pump for water only, where the vertical suction head from the water level is 25 ft (7.6 m) or less. Do not exceed the maximum suction head.Head refers to the height of a column of water that can be delivered by the discharge of the pump (Figure 1). Suction head (or suction lift) is the vertical distance between the center of the pump and the surface of the liquid on the suction side of the pump. Discharge head is the vertical distance between the pump’s discharge port and the point of discharge. Total head is the sum of the suction head and the discharge head. The elevation above sea level and friction losses must be taken into consideration.

Specifications

Model

4RLAG-2H (617056)

Engine

Honda™ GX120, Air Cooled, 4 Stroke, OHV, 118 cm3

Performance

4.0 HP @ 3600 rpm

Fuel Type

Refer to engine manufacturer’s owner’s manual

Oil Type

Refer to engine manufacturer’s owner’s manual

Shut Off

98 ft (29.9 m)

Suction head (max.)

25 ft (7.6 m)

Intake Size

2″ MNPT (5.1 cm)

Discharge Size

2″ MNPT (5.1 cm)

Maximum Flow

150 GPM (568 LPM)

Weight

52 Lb (23.6 kg)

Height

14.5″ (36.8 cm)

Width

14.25″ (36.2 cm)

Length

18.75″ (47.6 cm)
Red Lion 4RLAG-2H Aluminum Water Transfer Pump | Suction & discharge Kit 617125 | 617305 Minor Repair Kit | Red Lion Products | 617056 Honda Engine Trash Pump – 4HP | Ken’s Distributing Company | Pump casing 617326

Product Info

Model Item Number UPC cc Intake Discharge Suction Lift Max Head Max Flow GPM Fuel Tank (qt) Engine

4RLAG-2H

617056

0 10121 15146 8

118cc

2″ MNPT

2″ MNPT

25′

98′

150 gpm

2.1

Honda GX120 (118cc)

Carton Specifications

Model Length Width Height Weight(lbs) Carton Cubes (cu ft) Pallet Quantity Qty.per Layer Layers per Pallet

4RLAG-2H

18.75″

14.25″

14.50″

52

2.62

18

6

3
