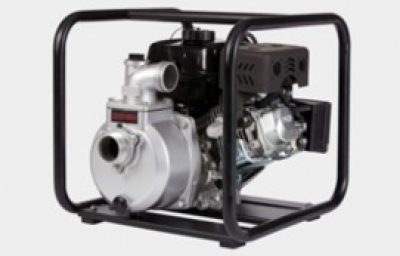

5RLAG-2L Aluminum Water Transfer Pump

request a quote

APPLICATIONS

Ideal for general purpose use in high volume liquid transfer and contractor de-watering applications.

FEATURES & BENEFITS

  • Durable cast iron semi-open style impeller
  • Lightweight aluminum outer casing: includes heavy-duty roll frame
  • Self-priming to 25 ft. suction lift
  • Built-in check valve
  • EPA Certified
  • Repair kits available
Click to rate this post!
[Total: 2 Average: 4]

Exploded parts

replacement-part-5RLAG-2L

REPLACEMENT PARTS and Repair Parts

REPLACEMENT PARTS

ITEM #

DESCRIPTION

CONTENTS

617301

Red Lion 5RLAG-2L Minor Repair kit

10, 11, 32, 33, 35, 36, 39

617311

Red Lion 5RLAG-2L Major Repair Kit

10, 11, 13, 14, 32, 33, 34, 35, 36, 37

617321

Red Lion 5RLAG-2L Casing Kit

9, 10, 11, 12, 15, 16, 17, 25

617330

Red Lion 5RLAG-2L Accessory Kit

30, 31

617341

Red Lion 5RLAG-2L

Suction and Discharge Flange Kit

23, 24, 26, 27, 28, 29, 30, 31, 40

617351

Red Lion 5RLAG-2L Rollframe Assembly

1, 2, 3, 4, 5, 6, 7, 8

INTRODUCTION

This is an engine-driven transfer pump for use in general de-watering applications and is suitable for pumping clear water. Do not use the pump in applications where sewage or any other debris (gravel, sand, floating debris, etc.) or corrosives are present. This instruction sheet provides you with the information required to safely own and operate your product. Retain these instructions for future reference. The product you have purchased is of the highest quality workmanship and material, and has been engineered to give you long and reliable service. This product has been carefully tested, inspected, and packaged to ensure safe delivery and operation. Please examine your item(s) carefully to ensure that no damage occurred during shipment. If damage has occurred, please contact the place of purchase. They will assist you in replacement or repair, if required.

APPLICATION

Use this pump for water only, where the vertical suction head from the water level is 25 ft (8 m) or less. Do not exceed the maximum suction head. Head refers to the height of a column of water that can be delivered by the discharge of the pump (Figure 1). Suction head (or suction lift) is the vertical distance between the center of the pump and the surface of the liquid on the suction side of the pump. Discharge head is the vertical distance between the pump’s discharge port and the point of discharge. Total head is the sum of the suction head and the discharge head. The elevation above sea level and friction losses must be taken into consideration.

Product Info

Model

Item Number

UPC

cc

Intake

Discharge

Suction Lift

Max

Head

 Max Flow GPM

Fuel Tank (qt)

Engine

5RLAG-2L

617033

0 10121 14502 3

179cc

2″ MNPT

2″ NPT

25′

92′

150 gpm

3.8

Air Cooled, 4 Stroke OHV (179cc)
Red Lion 5RLAG-2L Suction and Discharge Flange Kit |  5RLAG-2L Casing Kit 617321 | 5RLAG-2L Major Repair Kit 617311 | 5RLAG-2L ALUMINUM WATER TRANSFER PUMP | Red Lion Products | Ken’s Distributing Company | Red Lion 5RLAG-2L

Carton Specifications

Model

Length

Width

Height

Weight (lbs)

Carton Cubes (cu ft)

Pallet Quantity

Qty. per Layer

Layers per Pallet

5RLAG-2L

17.32″

19.69″

16.73″

62

3.75

8

4

2

SPECIFICATIONS

Model

5RLAG-2L*

Engine

Air Cooled, 4 Stroke, OHV, 179cc

Performance

5.0 HP @ 3600 rpm

Fuel Type

Refer to engine manufacturer’s owner’s manual

Oil Type

Refer to engine manufacturer’s owner’s manual

Shut Off

92 ft (28.0 m)

Suction head (max.)

25 ft (8 m)

Intake Size

2″ MNPT (5.08 cm)

Discharge Size

2″ MNPT (5.08 cm)

Maximum Flow

150 GPM (568 LPM)

Weight

55 Lb (24.9 kg)

Height

15.5″ (39.4 cm)

Width

14.5″ (36.8 cm)

Length

18.0″ (56.7 cm)
*5RLAG-2LKIT contains 1 of 5RLAG-2L plus the following accessories: 50′ lay flat discharge hose with attached couplings, 12′ reinforced suction hose, steel suction strainer and two 2″ aluminum adapters.
