Franklin Electric FBSEF-150-SE close-coupled self-priming water pump | 92932015
Click to rate this post!
[Total: 0 Average: 0]

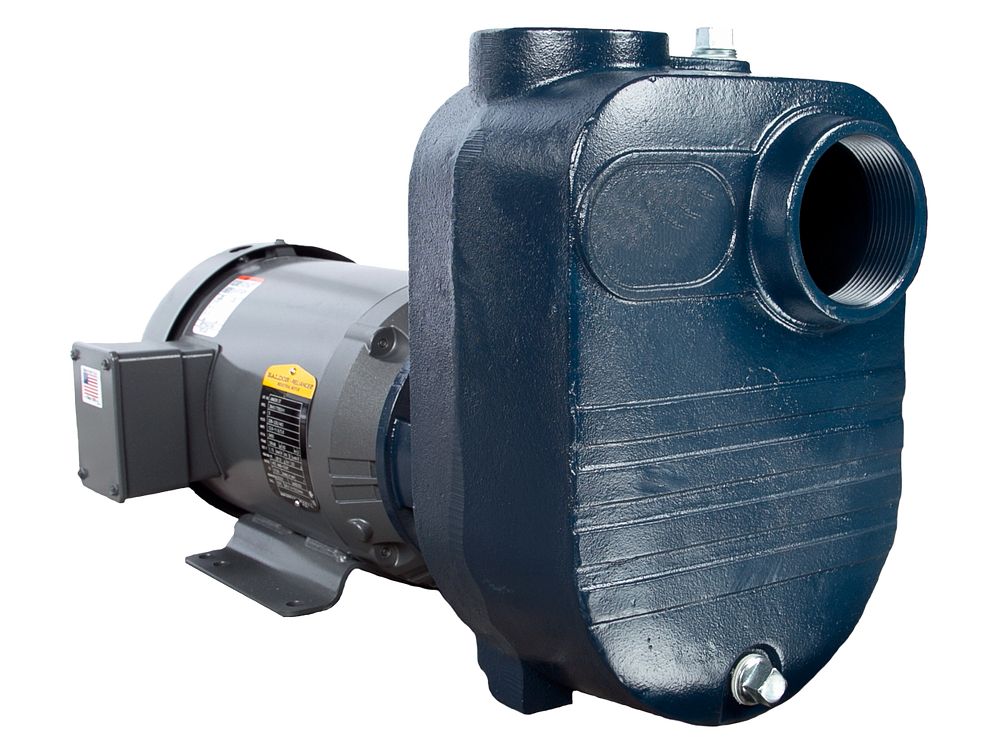

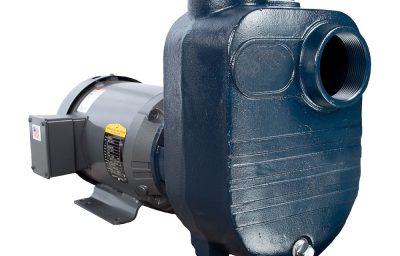

The Franklin Electric FBSEF-150-SE Model# 92932015 is a 1.5 HP close-coupled self-priming water pump built for tough jobs. Capable of pumping up to 295 GPM at temperatures up to 212°F, it handles fertilizer, salt water, and dirty water with ease. The cast iron body and TEFC motor make it the reliable choice for irrigation, construction, and industrial applications.
| Item: | 92932015 |
| Model: | FBSEF-150-SE |
| Ratings | |
| HP | 1.5 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 8 A |
| Motor Enclosure | TEFC |
| Liquid | |
| Maximum Fluid Temperature | 212 °F |
| Materials of Construction | |
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Dimensions | |
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 17.17 “ |
| Product Weight | 52 lb |
| Pump Height | 6.69 “ |
| Pump Width | 9 “ |
| Other | |
| Warranty Standard Time | 12 Months |
✔ Authorized Franklin Electric Distributor✔ Get Your Quote Today✔ For Fast Service Call 303.699.7845✔ Repair Parts Are Available For This Model# 92932015✔ Fast Shipping Available
