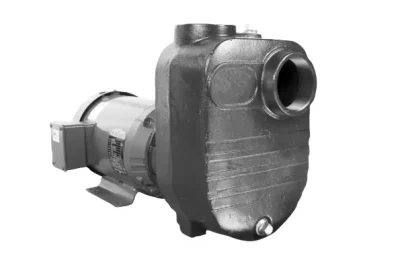

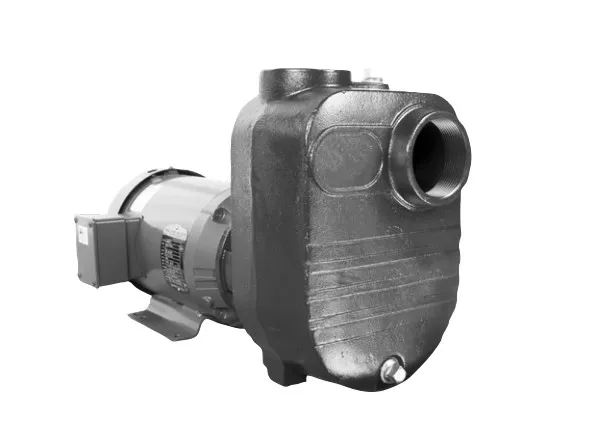

FBSEF Dimensions
Click to rate this post!
[Total: 1 Average: 5]
| Fig. | Series | Model | Order No. | Pole | Discharge NPT | Suction NPT | A | B | D | E | F | H | AB | BA | CP | C | G | J | S | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | FBSEF | FBSEF-150-SE | 92932015 | 2 | 1-1/4″ | 1-1/4″ | 5.63 | n/a | 3.81 | 2.12 | n/a | 0.44 | n/a | n/a | 17.17 | 6.69 | 2.00 | 4.00 | 7.44 | 6.54 | 3.26 |
| FBSEF-150-TE | 92934015 | 5.63 | n/a | 3.81 | 2.12 | n/a | 0.44 | 5.23 | n/a | 16.85 | 6.69 | 2.00 | 4.00 | 7.44 | 6.54 | 3.26 | |||||
| FBSEF-200-SE | 92932020 | 2 | 2″ | 2″ | 5.63 | n/a | 4.38 | 2.12 | n/a | 0.44 | 5.84 | n/a | 18.75 | 11.40 | 2.13 | 4.26 | 8.73 | 6.69 | 3.17 | ||
| FBSEF-200-TE | 92934020 | 5.63 | n/a | 4.38 | 2.12 | n/a | 0.44 | 5.74 | n/a | 17.87 | 11.40 | 2.13 | 4.26 | 8.73 | 6.69 | 3.17 | |||||
| FBSEF-300-SE | 92932030 | 5.63 | n/a | 4.38 | 2.12 | n/a | 0.44 | 5.74 | n/a | 19.81 | 11.40 | 2.13 | 4.26 | 8.73 | 6.69 | 3.17 | |||||
| FBSEF-300-TE | 92934030 | 5.63 | n/a | 4.38 | 2.12 | n/a | 0.44 | 5.74 | n/a | 18.75 | 11.40 | 2.13 | 4.26 | 8.73 | 6.69 | 3.17 | |||||
| FBSEFL | FBSEFL-050-SE | 92932005 | 4 | 5.63 | n/a | 4.38 | 2.12 | n/a | 0.44 | 5.18 | n/a | 16.98 | 11.40 | 2.13 | 4.26 | 8.73 | 6.69 | 3.17 | |||
| FBSEFL-050-TE | 92934005 | 5.63 | n/a | 4.38 | 2.12 | n/a | 0.44 | 5.19 | n/a | 15.97 | 11.40 | 2.13 | 4.26 | 8.73 | 6.69 | 3.17 | |||||
| 2 | FBSEF | FBSEF-500-SE | 92932050 | 2 | 3″ | 3″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.45 | 6.87 | 3.50 | 25.66 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 |
| FBSEF-500-TE | 92934050 | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.87 | 3.50 | 24.17 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 | |||||
| FBSEF-500-T5E | 92934051 | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.87 | 3.50 | 24.17 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 | |||||
| FBSEF-750-TE | 92934075 | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.87 | 3.50 | 25.67 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 | |||||
| FBSEF-750-T5E | 92934076 | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.87 | 3.50 | 25.67 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 | |||||
| FBSEFL | FBSEFL-075-TE | 92934007 | 4 | 6.50 | 5.94 | 3.50 | 2.75 | 5.00 | 0.34 | 5.73 | 2.88 | 21.51 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 | |||
| FBSEFL-100-TE | 92934010 | 6.50 | 5.94 | 3.50 | 2.75 | 5.00 | 0.34 | 5.73 | 2.88 | 21.54 | 14.00 | 1.63 | 3.63 | 10.25 | 10.36 | 4.61 |
NOTE: Dimensions are for estimating purposes only. All dimensions in inches.
