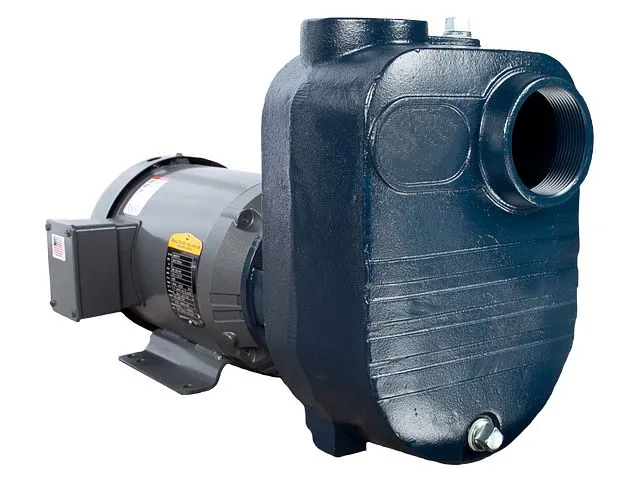

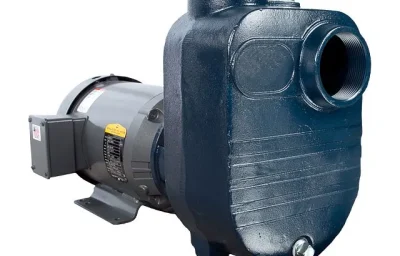

Franklin Electric FBSEF Series Close-Coupled Self-Priming Pump

FBSEF Pump Manuals & Repair Resources

The FBSEF Series Close-Coupled Self-Priming Pump is a heavy-duty centrifugal pump built for applications that demand high flow, reliable self-priming, and the ability to handle tough liquids. Available from 1.5 HP to 7.5 HP, the FBSEF Series is a step up from the standard FBSE line, offering greater capacity for irrigation systems, industrial water transfer, construction sites, and municipal use. At Ken’s Distributing Company, we stock the full FBSEF lineup and can help you find the right model for your specific job.

What Is the Franklin Electric FBSEF Series?

The FBSEF is Franklin Electric’s close-coupled, self-priming centrifugal pump series designed for medium to large-scale pumping needs. The name FBSEF refers to Franklin Electric’s Bronze and cast iron Self-priming series with an Extended Flow capacity range, built in a close-coupled configuration where the pump mounts directly to the motor for a compact, efficient footprint.

Unlike the FBSE Series which covers 1 to 3 HP for lighter residential and small commercial jobs, the FBSEF Series picks up where that line leaves off, running from 1.5 HP all the way to 7.5 HP. This makes it the right choice when you need more flow volume, more pressure, or longer run times in demanding conditions.

Kendisco is an authorized Franklin Electric distributor. That means every FBSEF pump we ship comes with full manufacturer support, genuine parts, and the confidence that you are getting a legitimate product backed by one of the most trusted names in the pump industry.

Technical Specifications

Max Flow Rate: Up to 295 GPM

HP Range: 1.5 HP to 7.5 HP

Volute Material: Cast Iron

Impeller Material: Semi-Open Cast Iron

Seal Material: Carbon/Ceramic faces, FKM elastomers, 300 Series Stainless Steel

Motor Type: TEFC (Totally Enclosed Fan-Cooled)

Discharge Connection: Threaded FNPT

Order Information

Franklin Electric FBSEF Self-Priming Single Phase Models

Franklin Electric FBSEF Self-Priming Three Phase Models

Franklin Electric FBSEFL Single Phase Models

Franklin Electric FBSEFL Three Phase Models

How the FBSEF Self-Priming Design Works

Self-priming pumps are built differently from standard centrifugal pumps. A standard centrifugal pump needs to be filled with water before it can operate. A self-priming pump like the FBSEF can draw water up from a source below or beside the pump without manual priming after the initial fill.

The FBSEF achieves this through an oversized volute chamber that retains enough liquid between uses to restart the priming cycle on its own. Air is evacuated from the suction line, water is drawn up, and the pump reaches full flow without operator intervention. This matters a lot on irrigation systems, dewatering jobs, and any setup where the pump shuts off and restarts frequently throughout the day.

Applications and Industries

The FBSEF Series is used across a wide range of industries because its combination of self-priming ability and high flow capacity solves problems that simpler pumps cannot handle. Here is where it performs best:

• Agriculture and Irrigation: The FBSEF handles fertilizer, slightly dirty water, and high-volume field irrigation with no issue. Farms across the region rely on this series for reliable seasonal irrigation without constant maintenance.
• Industrial Water Transfer: Manufacturing facilities, processing plants, and light industrial operations use the FBSEF to move water and compatible liquids between tanks, sumps, and systems.
• Construction Sites: Dewatering excavations, trenches, and foundations is a natural fit for the FBSEF because of its ability to handle water with debris and its self-priming restart capability after power interruptions.
• Municipal Systems: Municipalities use the FBSEF in water distribution support, park irrigation, and utility pumping where reliability and flow volume are non-negotiable.
• Mining Operations: The cast iron construction and semi-open impeller make the FBSEF capable of handling the kind of water encountered on mining sites.
• Commercial and Residential: Large commercial properties, golf courses, and high-demand residential properties use the FBSEF when standard residential pumps do not have the flow capacity needed.

Features and Benefits

• Cast Iron Volute: The pump body is cast iron with a large priming chamber that allows rapid self-priming and handles rugged daily use better than thermoplastic housings in demanding environments.
• Semi-Open Cast Iron Impeller: Designed to move fertilizer, salt water, dirty water, and other compatible liquids without clogging. The impeller uses blind hole tapping to protect the shaft from corrosion over time.
• Carbon/Ceramic Mechanical Seal: The seal combines carbon and ceramic faces with FKM elastomers and 300 Series stainless steel hardware for long service life even in chemically aggressive water conditions.
• TEFC Motor: The Totally Enclosed Fan-Cooled motor keeps dust, moisture, and debris out of the motor windings. This is the right motor type for outdoor and agricultural environments where exposure to the elements is unavoidable.
• Close-Coupled Design: The pump mounts directly to the motor with no coupling shaft between them. This eliminates alignment issues, reduces maintenance points, and keeps the overall footprint compact.
• Wide HP Range: Running from 1.5 HP to 7.5 HP, the FBSEF Series covers a broad range of jobs under one product family. You can scale up within the same series as your needs grow.
• Handles Tough Liquids: Salt water, fertilizer solutions, and water with light solids are all within the operating range of this pump. That flexibility makes it genuinely useful across multiple industries.

FBSEF vs. FBSE: Understanding the Difference

If you have been comparing the FBSEF and the FBSE Series, here is the straightforward answer. Both are Franklin Electric close-coupled self-priming centrifugal pumps with cast iron construction and similar mechanical designs. The difference is in the HP range and the resulting flow capacity.

If your job is a residential irrigation setup or a small commercial transfer application, the FBSE Series may be all you need. If you are running larger fields, multiple zones, industrial transfer, or any application that needs more than 3 HP, the FBSEF is the right choice. Our team at Ken’s Distributing is happy to help you choose between the two if you are unsure.

Installation and Compatibility

The FBSEF is a close-coupled pump, meaning setup is straightforward compared to frame mount configurations. Here are the key installation considerations:

• Mounting: The pump can be mounted on a base plate or directly to a skid. No separate motor alignment is required because the pump and motor share a common shaft.
• Suction Line: Install a foot valve at the water source to hold the prime. The suction line should be as short and direct as possible with minimal bends to reduce friction loss.
• Discharge Line: Use the threaded FNPT discharge connection. Match your pipe size to the discharge port size for best performance. Avoid reducing pipe diameter on the discharge side.
• Electrical: Single-phase models run on 115 VAC or 230 VAC. Verify your available voltage before ordering. Three-phase models are available for commercial and industrial installations.
• Initial Priming: Fill the pump housing with water before the first start. After that initial fill, the self-priming design handles restart cycles automatically.
• Ambient Conditions: The TEFC motor is suited for outdoor installation but protect it from direct flooding. Install the pump above the flood level of your site whenever possible.

Replacement Parts and Service

Franklin Electric builds the FBSEF Series with serviceability in mind. Wear parts like the mechanical seal, impeller, and volute gaskets are all replaceable without replacing the entire pump. Kendisco carries genuine Franklin Electric replacement parts for the FBSEF Series so you can keep your pump running without downtime.

If you need help identifying the right part by model number, call us at 303.699.7845 and our team will get you sorted out quickly. We also offer fast shipping so parts arrive when you need them.

Browse our Franklin Electric replacement parts and repair kits to find components for the FBSEF and all other Franklin Electric pump series.

Frequently Asked Questions

What does FBSEF stand for?

FBSEF refers to Franklin Electric’s self-priming centrifugal pump series in the close-coupled configuration with an extended flow and HP range. It is part of the same product family as the FBSE but is designed for higher-demand applications requiring up to 7.5 HP and up to 295 GPM.

What is the difference between the FBSE and the FBSEF?

The FBSE Series covers 1 HP to 3 HP and is best suited for residential and small commercial applications. The FBSEF Series runs from 1.5 HP to 7.5 HP and is built for larger irrigation, industrial, and municipal jobs that require more flow volume and horsepower.

What HP options are available in the FBSEF Series?

The FBSEF Series is available in 1.5 HP, 2 HP, 3 HP, 5 HP, and 7.5 HP configurations. Single-phase models run on 115 or 230 VAC. Three-phase models are available for larger commercial and industrial installations.

Is the FBSEF suitable for irrigation?

Yes. The FBSEF Series is widely used in agricultural and commercial irrigation applications. It handles fertilizer solutions and water with light debris, making it practical for real-world field conditions. The self-priming capability is especially useful for irrigation systems that cycle on and off throughout the day.

Can the FBSEF handle salt water or fertilizer?

Yes. The semi-open cast iron impeller is designed to handle fertilizer, salt water, dirty water, and similar liquids. The blind hole tapped impeller design protects the shaft from corrosion in these conditions.

Does the FBSEF need to be primed before use?

Only for the very first start. Fill the pump housing with water before initial startup. After that, the self-priming design draws water up from the source automatically on every subsequent restart without manual intervention.

Is the FBSEF pump available from stock at Kendisco?

Yes. Ken’s Distributing Company stocks the Franklin Electric FBSEF Series and can ship quickly. Call us at 303.699.7845 for availability, quotes, and technical support. We are an authorized Franklin Electric distributor serving customers across the country.
