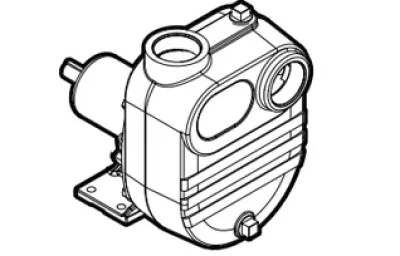

FBSTF Pump Repair Parts Breakdown
Click to rate this post!
[Total: 1 Average: 5]
| Fig. No. | Part Description | FBSTF-1 | FBSTF-2 | Part No. | FBSTF-3 | FBSTF-5 | Materials of Construction |
|---|---|---|---|---|---|---|---|
| 1 | FBSTF Pump Case | 305461001 | 305461002 | 305461015 | Cast Iron, ASTM-A48 CL30 | ||
| 2 | FBSTF Impeller | 305461005 | 305461007 | 305461016 | 305461017 | Cast Iron, ASTM-A48 CL30 | |
| 3 | FBSTF Seal Plate | N/A | N/A | 305461018 | 305461019 | Cast Iron, ASTM-A48 CL30 | |
| 5 | FBSTF Shaft | N/A | N/A | 305453049 | C1018120 | ||
| 5 | FBSTF Shaft and Bearing Assy. | 305453011 | N/A | N/A | Misc. | ||
| 12 | FBSTF Sleeve | N/A | N/A | 305453051 | 304 Stainless Steel | ||
| 16 | FBSTF Ball Bearing (2-pack) | N/A | N/A | 305463180 | Misc. | ||
| 26 | FBSTF Lip Seal | N/A | N/A | 305463139 | Nitrile (Buna) | ||
| 30 | FBSTF Retaining Ring | 305463027 | 305463181 | Steel | |||
| 35 | FBSTF Shaft Key | 305463028 | 305453028 | 301 Stainless Steel | |||
| 79 | FBSTF Transmission Head | 305461021 | 305461022 | 305453048 | Cast Iron, ASTM-A48 CL30 | ||
| 90 | FBSTF Mechanical Shaft Seal | 305463029 | 305463193 | Carbon/Ceramic/Buna/316SS | |||
| 100 | FBSTF Case Gasket | 305463133 | 305463194 | 305463195 | Nitrile | ||
| 500 | FBSTF Pipe Plug NPT (3-pack) | 305463050 | CAD Plated Steel | ||||
| 510 | FBSTF Water Slinger | 305453013 | 305453050 | N/A | 300 Series Stainless | ||
| 530A | FBSTF Lockwasher (8-pack) | 305463032 | Zinc Plated Steel | ||||
| 530B | FBSTF Nut, Hex (8-pack) | 305463033 | Zinc Plated Steel | ||||
| 531 | FBSTF Bolt/Threaded Stud (4-pack) | 305463053 | 305463196 | Zinc Plated Steel/18-8 SS | |||
Pre-May 2019
| 3 | Seal Plate | N/A | 305461018 | N/A | Cast iron, ASTM‑A48 CL30 | |
| 79 | Transmission Head | N/A | 305461022 | N/A | Cast iron, ASTM‑A48 CL30 | |
| 100 | Gasket, Case | 305463133 | 305463194 | 305463195 | Nitrile | |
