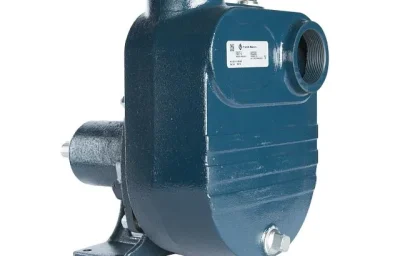

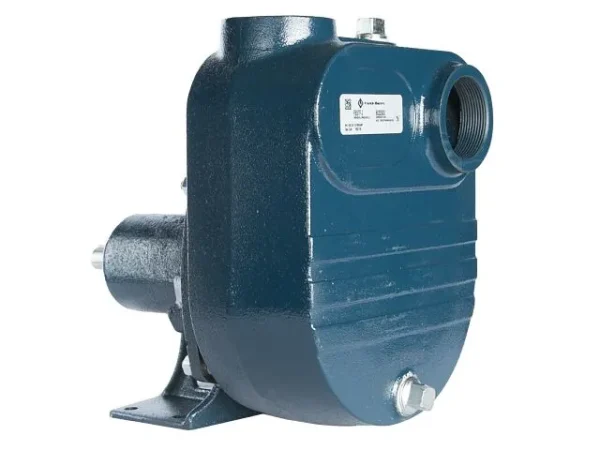

Franklin Electric FBSTF Series Frame Mount Self-Priming Pump
FBSTF Pump Manuals & Resources
The Franklin Electric FBSTF Frame Mount Self-Priming Pump is a heavy-duty centrifugal pump built for irrigation, construction, mining, and industrial water transfer applications that demand reliable self-priming performance without constant operator attention. With a rugged cast iron construction throughout, a semi-open non-clogging impeller, Viton elastomer mechanical seals, and a heavy-duty bearing frame that supports both belt drive and direct drive configurations, the FBSTF Series handles tough jobs in demanding environments. At Ken’s Distributing Company, we stock the FBSTF Series and can help you select the right model for your specific application and drive setup.
What Is the Franklin Electric FBSTF Series Frame Mount Self-Priming Pump?
The FBSTF is Franklin Electric’s frame mount self-priming centrifugal pump designed for medium to large-scale industrial and agricultural pumping applications. The name FBSTF refers to Franklin Electric’s self-priming pump series in the frame mount configuration with threaded connections, built for belt drive and direct drive installations.
Two things set the FBSTF apart from standard frame mount centrifugal pumps. First, it is self-priming. Unlike a conventional centrifugal pump that needs the housing flooded with liquid before every start, the FBSTF draws water up from the source automatically after the initial housing fill. Second, it uses a semi-open non-clogging impeller that handles water carrying light solids, debris, and sediment without clogging, which is critical in real-world agricultural and construction site conditions where the water source is not always clean.
Kendisco is an authorized Franklin Electric distributor. Every FBSTF pump ordered through Ken’s Distributing Company is a genuine Franklin Electric product backed by full manufacturer support and access to genuine replacement parts when service is needed.
Technical Specifications
Volute Material: Cast Iron
Impeller Type: Semi-Open Cast Iron, Non-Clogging
Impeller Feature: Blind hole tapped to protect shaft from corrosion
Seal: Carbon/Ceramic faces, Viton elastomers, 300 Series Stainless Steel
Shaft: One-piece high-strength steel
Bearing Frame: Heavy duty with sealed bearings, keyed stainless shaft
Drive Compatibility: Belt drive and direct drive
Connection Type: Threaded FNPT suction and discharge
Rotation: Clockwise facing the shaft
Order Information
FBSTF Series Frame Mount Self-Priming Pump
| Item | Model | Seal | Suction | Discharge | Rotation |
|---|---|---|---|---|---|
| 90253001 | FBSTF-1 | Mechanical Seal | Threaded – FNPT | Threaded – FNPT | Clockwise facing the shaft |
| 90253002 | FBSTF-2 | Mechanical Seal | Threaded – FNPT | Threaded – FNPT | Clockwise facing the shaft |
| 90253003 | FBSTF-3 | Mechanical Seal | Threaded – FNPT | Threaded – FNPT | Clockwise facing the shaft |
| 90253004 | FBSTF-5 | Mechanical Seal | Threaded – FNPT | Threaded – FNPT | Clockwise facing the shaft |
How the FBSTF Self-Priming System Works
Self-priming in the FBSTF Series works through the same principle as other Franklin Electric self-priming pumps. The cast iron volute includes a priming chamber that retains enough liquid between pump cycles to restart the priming process without manual intervention. When the pump starts, this retained liquid creates a vacuum on the suction side, drawing air out of the suction line and pulling water up from the source until full flow is established.
The tapped openings on the volute for priming, venting, and draining make the initial fill and ongoing service straightforward. Fill through the priming port before first startup, vent air during priming, and drain completely through the drain port for winterizing or servicing without disconnecting piping.
For frame mount pumps used in irrigation and construction applications where the pump starts and stops repeatedly throughout a work shift, the self-priming capability means the operator does not need to manually prime the pump on every restart. The pump handles it independently.
Construction Details
Volute
The FBSTF volute is heavy cast iron construction with tapped openings for priming, venting, and draining built directly into the body. This gives you easy access for startup priming, air bleeding during initial commissioning, and complete drainage at end of season or during service without disconnecting any of the installed piping.
Impeller
The semi-open cast iron impeller is specifically designed for non-clogging performance in water that carries light solids, sand, organic debris, and sediment. The semi-open design, with vanes on one shroud only, allows particles to pass through the impeller passages rather than getting trapped and causing clogging or imbalance. The impeller uses a blind hole tapped connection to the shaft, which prevents corrosive liquids from contacting and degrading the shaft material at the connection point.
Mechanical Seal
The FBSTF uses a carbon and ceramic mechanical seal with Viton elastomers and 300 Series stainless steel hardware. Viton elastomers provide significantly better chemical resistance than standard BUNA or Nitrile elastomers, making the FBSTF seal suitable for fertilizer solutions, mildly aggressive chemicals, and water with elevated temperatures. The mechanical seal requires no field adjustment and creates a positive leak-free seal at the shaft penetration point throughout its service life.
Shaft
The one-piece high-strength steel shaft provides the structural integrity needed for belt drive and direct drive configurations. A one-piece shaft eliminates the potential weak points that multi-piece shaft assemblies can develop over time under the bending and torsional loads of belt drive operation. The shaft is keyed stainless for connection to the bearing frame and impeller.
Bearing Frame
The heavy-duty bearing frame uses sealed bearings and a keyed stainless shaft to support both belt drive and direct drive configurations. Sealed bearings reduce contamination from dust and moisture in field environments, extending bearing service life between maintenance intervals. The frame mount bearing arrangement allows the pump end to be serviced independently of the drive source.
Applications and Industries
The FBSTF Series is used across a range of demanding applications where self-priming capability, solids handling, and frame mount drive flexibility are all needed in the same pump.
- Agricultural Irrigation: The FBSTF handles water from ponds, canals, and open sources that carry silt, organic debris, and sediment without clogging the semi-open impeller. The self-priming design handles repeated start-stop irrigation cycles automatically. Frame mount drive compatibility means it can be powered by a tractor PTO or engine where electrical power is not available.
- Construction: Dewatering excavations, trenches, and foundations on construction sites involves water that is frequently contaminated with sand, silt, and fine debris. The FBSTF semi-open impeller and self-priming capability make it practical for this application without constant operator monitoring.
- Mining: Mining site water management involves water sources with high sediment and solid content. The cast iron construction and non-clogging impeller of the FBSTF handle these conditions reliably in continuous service.
- Municipal: Municipalities use the FBSTF for water transfer, park irrigation, and utility pumping applications where reliable automated operation is needed without dedicated pump operators.
- Commercial: Commercial properties with irrigation systems, water features, and process water requirements use the FBSTF where the frame mount drive configuration and self-priming capability are both needed.
- Light Industrial: Industrial facilities use the FBSTF for liquid transfer, sump pumping, and process water movement where the water may carry suspended solids that would damage a standard centrifugal pump.
Features and Benefits
- Self-Priming After Initial Fill: Fill the volute once through the priming port and the pump handles every subsequent restart automatically. No manual priming required during normal operation, which is a significant productivity advantage on jobs where the pump cycles on and off throughout the day.
- Semi-Open Non-Clogging Cast Iron Impeller: Passes light solids, sand, debris, and organic material without clogging. The blind hole tapped connection protects the shaft from corrosive liquid penetration at the impeller interface, extending shaft service life in aggressive water conditions.
- Viton Elastomer Mechanical Seal: Viton provides substantially better chemical and temperature resistance than standard BUNA or Nitrile elastomers. This makes the FBSTF suitable for fertilizer solutions, mildly corrosive water, and higher-temperature applications that would degrade standard seal elastomers prematurely.
- One-Piece High-Strength Steel Shaft: Eliminates the weak points of multi-piece shaft assemblies under belt drive bending and torsional loads. The one-piece design provides consistent shaft stiffness and alignment throughout the bearing frame.
- Heavy Duty Sealed Bearing Frame: Sealed bearings resist contamination from dust, moisture, and abrasive particles in field and construction environments. The keyed stainless shaft connection to the impeller and drive end provides a secure, corrosion-resistant interface.
- Belt Drive and Direct Drive Compatibility: Power the FBSTF from an electric motor, gas engine, or PTO shaft depending on what is available at your installation site. The frame mount design gives you complete flexibility over your power source.
- Tapped Volute Ports: Priming, venting, and draining ports built into the cast iron volute body make startup commissioning and end-of-season service straightforward without disconnecting installed piping.
- Clockwise Rotation on Both Models: Both the FBSTF-1 and FBSTF-2 share the same clockwise rotation direction, simplifying drive source selection and making the models interchangeable from a drive configuration standpoint.
FBSTF vs. FMIT: Choosing the Right Frame Mount Self-Priming Pump
Franklin Electric offers two primary frame mount self-priming pump options at Kendisco. Here is how the FBSTF and FMIT compare so you can make the right choice for your application.
| Feature | FBSTF Series | FMIT Series |
|---|---|---|
| Impeller Type | Semi-open non-clogging cast iron | Varies by model |
| Seal Elastomer | Viton (superior chemical resistance) | Standard elastomers |
| Shaft Design | One-piece high-strength steel | Standard shaft configuration |
| Best For | Chemical exposure, solids handling, agricultural | High-flow irrigation and industrial transfer |
| Drive Options | Belt drive and direct drive | Belt drive and direct drive |
| Connection | Threaded FNPT | Threaded FNPT |
| Self-Priming | Yes | Yes |
If your application involves water with light solids, fertilizer solutions, or mildly aggressive chemistry where Viton seal performance matters, the FBSTF is the better choice. If you need maximum flow rate for large-scale irrigation and the FMIT’s flow capacity better matches your system requirements, that may be the right direction. Call Ken’s Distributing at 303.699.7845 and we will help you decide based on your specific flow, head, and water quality requirements.
Installation and Compatibility
- Initial Priming: Fill the pump housing through the tapped priming port before the first startup. Use the venting port to bleed air from the housing during fill. After the initial fill, the self-priming design handles every subsequent restart automatically.
- Suction Line: Install a foot valve at the water source to maintain liquid in the suction line between pump cycles. Keep the suction line as short and direct as possible with minimal bends to reduce friction loss and maintain adequate NPSH for reliable self-priming.
- Discharge Line: Connect to the threaded FNPT discharge port. Match your pipe diameter to the discharge port size. Install a check valve on the discharge side to prevent backflow when the pump shuts down.
- Drive Setup: For belt drive installations, use properly sized pulleys to achieve the correct pump RPM for your flow and pressure requirements. Ensure proper belt tension and pulley alignment before startup. For direct drive, align the coupling precisely before running the pump. Misalignment is the leading cause of premature bearing failure on frame mount pumps.
- Rotation Direction: Both FBSTF models rotate clockwise when facing the shaft. Confirm your drive source rotation direction matches before connection.
- Mechanical Seal Protection: Never run the FBSTF dry. The mechanical seal requires liquid for lubrication and cooling at all times during operation. Even brief dry running damages the carbon and ceramic seal faces.
- Winterizing: Use the drain port on the volute to completely empty the pump housing before freeze conditions. Residual water in a cast iron volute can cause cracking if it freezes.
Replacement Parts and Service
Franklin Electric designs the FBSTF Series for field serviceability. The mechanical seal, impeller, and shaft components are all accessible without replacing the entire pump. The frame mount configuration means the pump end can be serviced without disturbing the drive source or base mounting.
Ken’s Distributing Company carries genuine Franklin Electric FBSTF Series replacement parts including mechanical seals, semi-open impellers, and bearing components. When wear items need replacement, call us at 303.699.7845 and we will identify the correct part by model number and get it shipped quickly.
Browse our Franklin Electric replacement parts and repair kits for the FBSTF Series and all other Franklin Electric pump lines.
Frequently Asked Questions
What does FBSTF stand for in Franklin Electric pump naming?
FBSTF refers to Franklin Electric’s self-priming pump series in the frame mount configuration with threaded connections. It is the frame mount version of the self-priming centrifugal pump family, designed for belt drive and direct drive installations in industrial, agricultural, and construction applications.
Is the FBSTF pump self-priming?
Yes. The FBSTF Series is self-priming after the initial housing fill. Fill the volute through the tapped priming port before the first startup. After that, the retained liquid in the priming chamber allows the pump to draw water up from the source automatically on every subsequent restart without manual intervention.
Why does the FBSTF use Viton elastomers instead of BUNA or Nitrile?
Viton elastomers provide significantly better resistance to chemicals, fertilizers, and elevated temperatures than standard BUNA or Nitrile elastomers. This makes the FBSTF the right choice for agricultural applications involving fertilizer solutions and other mildly aggressive liquids that would degrade standard seal elastomers prematurely and cause early seal failure.
What is the advantage of a semi-open impeller on the FBSTF?
The semi-open non-clogging impeller allows light solids, sand, silt, and organic debris to pass through the pump without clogging. This is critical for agricultural and construction applications where the water source is not always clean. The blind hole tapped impeller connection also prevents corrosive liquids from reaching and degrading the shaft at the impeller interface.
What drive configurations work with the FBSTF Series?
The FBSTF bearing frame supports belt drive and direct-coupled drive configurations. It can be powered by an electric motor, gas engine, or PTO shaft with appropriate coupling hardware. Both FBSTF-1 and FBSTF-2 rotate clockwise when facing the shaft.
What is the difference between the FBSTF-1 and FBSTF-2 models?
The FBSTF-1 and FBSTF-2 represent different size configurations within the series providing different flow rates and pressure capabilities. Both share the same construction materials, seal type, and clockwise rotation. Contact Ken’s Distributing at 303.699.7845 for specific performance data on each model to match the right size to your flow and head requirements.
Can I get FBSTF replacement parts from Kendisco?
Yes. Ken’s Distributing Company stocks genuine Franklin Electric FBSTF Series replacement parts including Viton mechanical seals, semi-open impellers, and bearing components. Call 303.699.7845 for availability and fast shipping on all parts.
