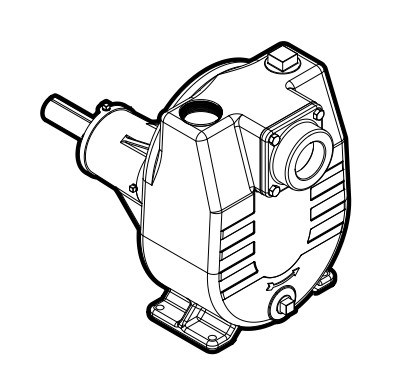

FMIT Pump Dimensions
Click to rate this post!
[Total: 0 Average: 0]
| Model | Keyway | Dimensions (in) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | M | N | P | S | ||
| FMIT-20 | 1/4 | 19.63 | 3.50 | 1.250 | 5.25 | 0.44 | 4.00 | 3.40 | 13.66 | 10.50 | 0.50 | 3.13 | 6.16 | 5.29 | 8.50 |
| FMIT-30 | 1/4 | 23.21 | 3.42 | 1.250 | 7.75 | 0.56 | 4.75 | 5.00 | 15.88 | 12.76 | 0.75 | 3.25 | 7.31 | 6.13 | 10.75 |
| FMIT-40 | 3/8 | 27.04 | 3.14 | 1.625 | 8.68 | 0.56 | 6.50 | 4.93 | 20.40 | 15.76 | 0.75 | 4.75 | 9.28 | 8.00 | 13.50 |
