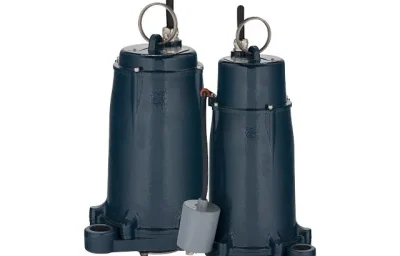

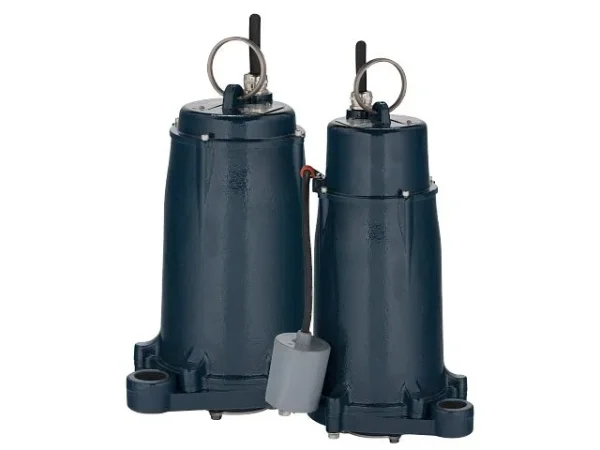

IGP Series Grinder Pump

FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist.

Overview

Vertical 1-1/4″ FNPT discharge
Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage
Externally-mounted start components*
Carbon/Ceramic mechanical seal
Deflection-resistant, short motor shaft
Corrosion-resistant brass impeller minimizes downtime and maintenance
Seven-vane, angled face, non-clogging, balanced impeller
Tight cutting clearances for superior grinding at 414,000 cuts per minute
Epoxy-coated finish for corrosion resistance and durability
Built-in overload protection prevents over-current and over temperature damage
*The IGP Manual Series requires a specific control panel or capacitor kit from FPS, matched to the pump for proper operation and third-party approval.

Click to rate this post!

[Total: 0 Average: 0]

Capacity	32 gpm @ 20′
Shut Off	130′ (39.6 m)
Max. Liquid Temp.	140 °F (60 °C)
Discharge	1-1/4″ (31.75 mm) Vertical FNPT
Impeller	Brass
Electrical	208-230 V, 60 Hz, 13.9 A, Single Phase 208-230 V, 60 Hz, 10 A, Three Phase 460 V, 60 Hz, 4.5 A, Three Phase
Operation	Manual or Automatic

Order Information

IGP-M Series Manual Grinder Pump

Item	Model	HP	Volts	Discharge	Amps – Full Load	Lead Length
515864	IGP-M231-15	2 hp	230 VAC	1.25 “	13.9 A	15 ft
515879	IGP-M231-30	2 hp	230 VAC	1.25 “	13.9 A	30 ft
515870	IGP-M233-30	2 hp	230 VAC	1.25 “	10 A	30 ft
515871	IGP-M463-30	2 hp	460 VAC	1.25 “	4.5 A	30 ft

IGP-A Series Automatic Grinder Pump

Item	Model	HP	Volts	Discharge	Amps – Full Load	Lead Length
515861	IGP-A231-20	2 hp	230 VAC	1.25 “	13.9 A
515862	IGP-A231-20	2 hp	230 VAC	1.25 “	13.9 A	20 ft
515873	IGP-A231-30	2 hp	230 VAC	1.25 “	13.9 A	30 ft
515874	IGP-A231-30	2 hp	230 VAC	1.25 “	13.9 A	30 ft
