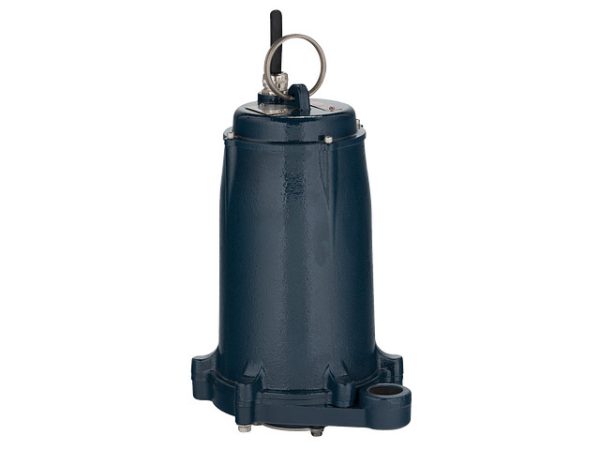

515879 – IGP-M231-30

FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist

Item:	515879
Model:	IGP-M231-30

Ratings
HP	2 hp
Frequency	60 Hz
Phases	Single-Phase
Amps – Full Load	13.9 A
Volts	230 VAC
Lead Length	30 ft
Continuous Duty	Yes
Motor Insulation Classification	F
Maximum Flow Rate – 60 Hz	33 gpm
Minimum Flow Rate – 60 Hz	9 gpm
Shut Off	120 ft
Minimum Head – 60 Hz	0 ft
Shut Off 60 Hz	130 ft
Motor Cooling	Fully Submerged
Pump rpm – 60 Hz	3450
Liquid
Maximum Fluid Temperature	104 °F

Materials of Construction
Impeller	Vortex
Impeller Material	Brass
Motor Shaft End – Material	Stainless Steel
Intake Screen Material	Stainless Steel
Seal Material	Carbon Ceramic
Seal	Mechanical Seal
Motor Fill Solution	Oil (white oil)
Rotating Cutter Material	AISI 440C Rockwell 55-60C
Volute / Side Inlet Material	Cast Iron
Stationary Cutter Material	AISI 440C Rockwell 55-60C
Dimensions
Discharge	Threaded – FNPT
Discharge Diameter	1.25 “
Impeller Diameter	6.25 “
Pump Length	9.6 “
Product Weight	80 lb
Product Weight with Pack	85 lb
Carton Length	11 “
Carton Width	14 “
Carton Height	23 “
Pump Height	16.1 “
Pump Width	11.4 “
Shaft Diameter	1.13 “
Other
Electrical Agency Approvals	cCSAus
Warranty Standard Time	24 Months
Applications	Residential and light commercial sewage waste transfer
