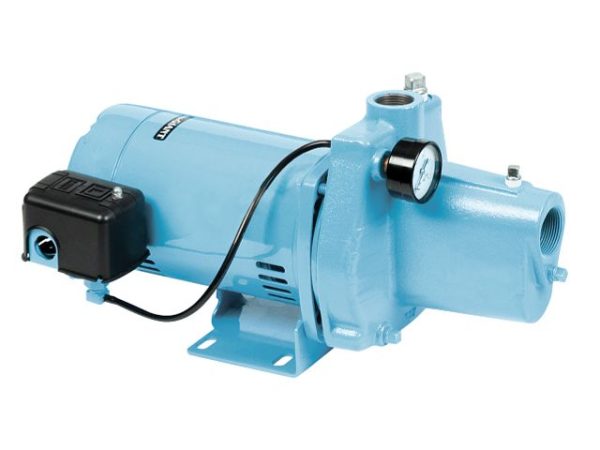

The JP Series of shallow well jet pumps are ideal for supplying fresh water to rural homes, farms, and cabins. These pumps complete installations where the vertical distance from the pump to the pumping water level does not exceed 25 feet.

Features & Benefits

1/2 to 1 hp motor
Total suction lift ranges from 5′ to 25′ dependent upon the model
Cast iron casing and seal plate
1-1/4″ (31.7 mm) suction
1″ NPT (25.4 mm) discharge

Overview

The JP Series is a durable shallow well jet pumps made of cast iron casing and seal plate for long life. They feature a precision-engineered thermoplastic impeller, diffuser, nozzle, and venturi. Equipped with a clean-out plug to easily unclog the nozzle. The pressure gauge is included with all models.

Specifications

Horsepower	1/2, 3/4, or 1 hp
Pressure	Up to 80.6 PSI
Discharge	1″ NPT (25.4 mm)
Impeller	Thermoplastic
Electrical	115 V or 230 V

Performance

Order Information

JP Series Shallow Well Jet Pump

Item	Model	HP	Volts	Max PSIG
558274	JP-050-C	1/2 hp	115 VAC / 230 VAC	64.2 PSI
558275	JP-075-C	3/4 hp	115 VAC / 230 VAC	65 PSI
558276	JP-100-C	1 hp	115 VAC / 230 VAC	66.2 PSI
