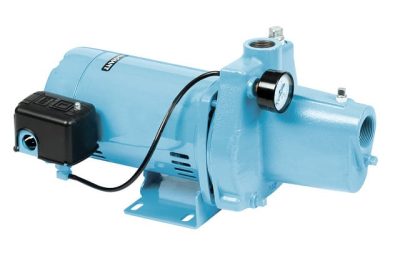

Little Giant’s JP-075-C Shallow Well Jet Pump is equipped with 3/4 horsepower and 115/230v. Used in supplying fresh water to rural homes, farms and cabins. Installs where the vertical distance from pump to pumping water level does not exceed 25 feet. Constructed from cast iron casing and seal plate for durability and long life.
| Item: | 558275 |
| Model: | JP-075-C |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Starting | 25 A |
| Volts | 115 VAC / 230 VAC |
| Motor Type | Surface |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Max PSIG | 65 PSI |
| Switch Type | Adjustable Pressure Switch |
| Motor Enclosure Type | ODP |
| Tank Capacity | 0 gal |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Closed |
| Impeller Material | Glass Filled Thermoplastic |
| Motor Shaft End – Material | Stainless Steel |
| Fasteners Material | Plated Steel |
| Seal Material | Phenolic Ceramic Buna |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1 “ |
| Suction | 1.25 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 17.3 “ |
| Product Width | 9 “ |
| Product Height | 9.01 “ |
| Pump Length | 17.31 “ |
| Product Weight | 35 lb |
| Product Weight w/ Pack | 38 lb |
| Carton Length | 25.81 “ |
| Carton Width | 12.38 “ |
| Carton Height | 14.88 “ |
Other |
|
| Accessories Included | Pressure gauge included |
| Minimum Order Quantity | 1 |
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 24 Months |
