Monarch ACE-100 End Suction Centrifugal Pump with C-Face Motor & Repair Parts

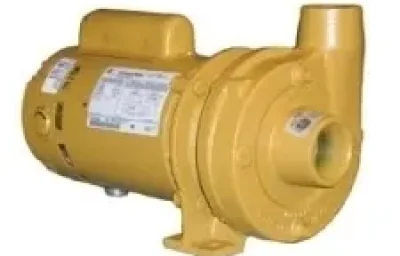

Monarch Industries ACE-100 (1 HP) End Suction Centrifugal Pump
The Monarch Industries ACE-100 (compatible with Franklin Electric FAC 100) is a robust 1 HP End Suction Centrifugal Pump designed for reliability and performance. Sitting in the sweet spot of the ACE series, the ACE-100 offers the perfect balance of power and efficiency for residential irrigation, water circulation, and industrial transfer applications.
Engineered with a heavy-wall cast gray iron casing and impeller, this pump is built to outlast plastic alternatives. It features a standard 1-1/2″ NPT suction port and 1-1/4″ NPT discharge, coupled with a high-performance C-Face motor. With mechanical seals rated for temperatures up to 200°F, the ACE-100 is capable of handling hot water circulation duties as effectively as cold water transfer.
Key Features of the ACE-100
- 1 HP Performance: Powered by a 3600 RPM, single-phase, industry-standard C-face motor (Frame 56J).
- Durable Construction: Both the casing and impeller are made from cast gray iron, providing superior resistance to wear and abrasion.
- High-Temperature Rating: Comes standard with a high-temp mechanical seal, allowing operation with fluids up to 200°F.
- Optimized Design: Features an accessible drain plug to prevent frost damage and facilitate easy priming air bleeding.
- Bearing Protection: A shaft flinger and large drain hole in the adapter bracket prevent moisture from pooling near motor bearings.
Common Applications
The ACE-100 is versatile enough for a wide range of uses:
- Lawn Sprinkling: Provides consistent pressure for medium-sized irrigation zones.
- Water Transfer: Efficiently moves water from cisterns, lakes, or holding tanks.
- Booster Service: Increases line pressure for wash-down or industrial applications.
- Hot Water Circulation: Safe for use in heating systems due to high-temp seals.
Technical Specifications & Performance

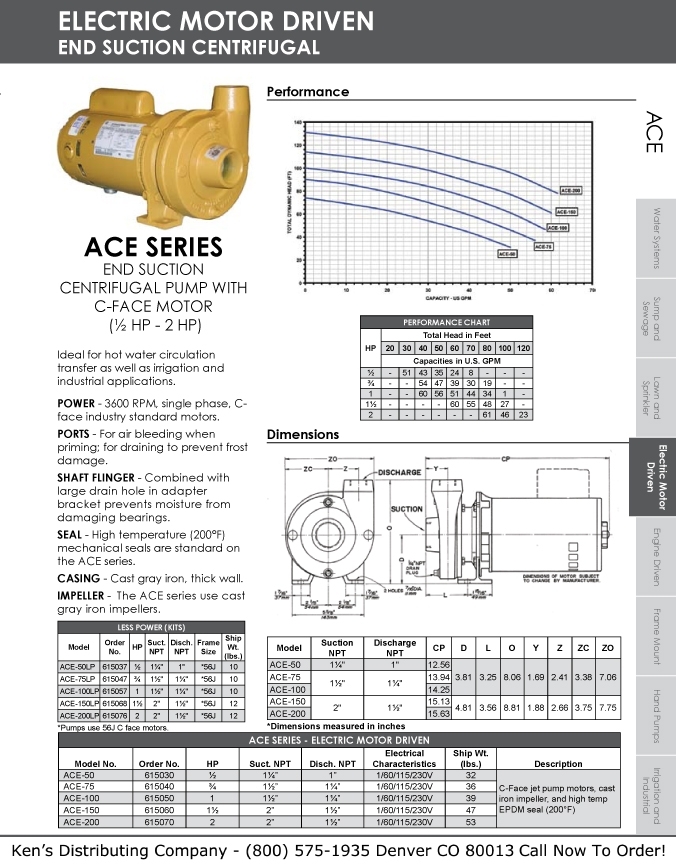

Performance Chart (ACE-100 Specific)
Total Head in Feet vs. Capacities in U.S. GPM
| HP | Model | 40 ft | 50 ft | 60 ft | 70 ft | 80 ft | 100 ft |
|---|---|---|---|---|---|---|---|
| 1 | ACE-100 | 60 | 56 | 51 | 44 | 34 | 1 |
ACE-100 Model Specifications
| Model No. | Order No. | HP | Suct. NPT | Disch. NPT | Electrical Characteristics | Ship Wt. (lbs.) |
|---|---|---|---|---|---|---|
| ACE-100 | 615050 | 1 | 1-1/2″ | 1-1/4″ | 1/60/115/230V | 39 |
Less Power (Pump End Kit Only)
| Model | Order No. | HP | Suct. NPT | Disch. NPT | Frame | Ship Wt. |
|---|---|---|---|---|---|---|
| ACE-100LP | 615057 | 1 | 1-1/2″ | 1-1/4″ | *56J | 10 lbs |
Dimensions (Inches)
| Model | Suction | Discharge | CP | D | L | O | Y | Z | ZC | ZO |
|---|---|---|---|---|---|---|---|---|---|---|
| ACE-100 | 1-1/2″ | 1-1/4″ | 14.25 | 3.81 | 3.25 | 8.06 | 1.69 | 2.41 | 3.38 | 7.06 |

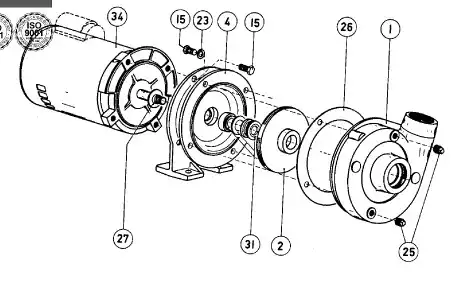

Repair Parts
| Ref. | Code # | Applicable Models | Qty. | Description |
|---|---|---|---|---|
| 1 | 437721 | ACE-100 (also fits ACE-75) | 1 | Casing |
| 2 | 437780 | ACE-100 Only | 1 | Impeller |
| 4 | 437881 | ACE-100 | 1 | Electric Adapter |
| 7 | 422790 | Where applicable | 1 | Wear Ring |
| 15 | 119990 | ACE-100 | 8 | Hex. Hd. Bolt 3/8 |
| 23* | 175500 | ACE-100 | 4 | Aluminum Washer |
| 25 | 185620 | ACE-100 | 2 | Pipe Plug 1/4 NPT |
| 26* | 193900 | ACE-100 | 1 | Gasket |
| 27 | 191790 | ACE-100 | 1 | Flinger |
| 31* | 240250 | ACE-100 | 1 | Seal 5/8 Ø, Type 6 |
| 34 | 204160 | ACE-100 Only | 1 | Motor, 1 HP, 115/230 V |
Frequently Asked Questions
What are the suction and discharge port sizes for the ACE-100?
The ACE-100 features a 1-1/2″ NPT suction port and a 1-1/4″ NPT discharge port.
Does the ACE-100 use a plastic or metal impeller?
The ACE-100 uses a heavy-duty cast gray iron impeller (Part #437780), not plastic.
Is the ACE-100 pump dual voltage?
Yes, the 1 HP motor included with the ACE-100 is dual voltage, capable of running on 115V or 230V single-phase power.
What is the correct gasket part number for the ACE-100?
The correct replacement gasket for the ACE-100 is Part #193900. Please note that larger models (ACE-150/200) use a different gasket.
