Monarch BSE-S200 Electric Motor Driven Utility Pump & Repair Parts
Maximum Power and Flow: The Monarch BSE-S200

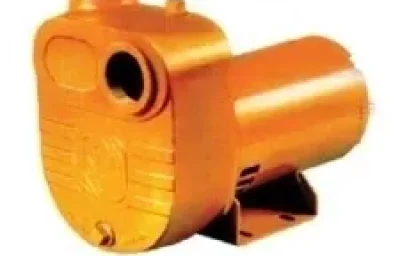

The Monarch BSE-S200 Electric Motor Driven Utility Pump is the flagship model of the BSE-S series, delivering the highest flow rates and head pressure in its class. Engineered with a powerful 2 HP Capacitor Start motor, this pump is designed for heavy-duty applications where standard pumps fall short. Whether you are managing extensive agricultural irrigation, filling nurse tanks, or performing rapid dewatering, the BSE-S200 provides the muscle needed to get the job done.
Featuring massive 2-inch NPT suction and discharge ports, this unit is capable of moving up to 126 Gallons Per Minute (GPM). Despite its power, it retains the user-friendly features of the series, including a rugged cast iron construction and a “blind hole tapped” impeller. This specific impeller design prevents liquid from contacting the motor shaft, ensuring that corrosive fluids like salt water or liquid fertilizers do not compromise the motor’s integrity.
Key Features and Benefits
- 2 HP High-Output Motor: The strongest motor in the lineup, designed for high-demand residential, commercial, and agricultural tasks.
- High Volume Transfer: Capable of pumping 126 GPM at 20 feet of head, making it ideal for moving large volumes of water quickly.
- 2-Inch Ports: Large intake and discharge accommodate heavy flow without restriction.
- Superior Durability: Constructed with a cast iron casing and impeller to withstand abrasive environments.
- Shaft Protection: The semi-open impeller design isolates the motor shaft from the liquid, preventing corrosion from harsh fluids.
- Self-Priming: Features a large reservoir casing for quick re-priming and a garden-hose-ready plug for easy initial filling.
Common Applications
- High-Volume Dewatering: Rapidly drains flooded fields, construction sites, and large sumps.
- Agricultural Irrigation: Provides high pressure and flow for extensive sprinkler lines and cannon sprayers.
- Liquid Transfer: Efficiently moves water, salt water, and liquid fertilizers.
- Industrial Circulation: Reliable performance for continuous duty water circulation.
Technical Specifications
| General Specifications | |
|---|---|
| Model Number | BSE-S200 |
| Order Number | 615635 |
| Horsepower (HP) | 2 HP |
| Suction / Discharge | 2″ NPT x 2″ NPT |
| Motor Type | Capacitor Start (Square Flange) |
| Electrical Characteristics | 1 Phase / 60 Hz / 115/230V* |
| Shipping Weight | 60 lbs |
| Impeller Material | Semi-open, Cast Iron |
Dimensions
| Model | Discharge (A) | Suction (B) | Priming Plug (C) | Drain Holes (D) | Mounting (E) |
|---|---|---|---|---|---|
| BSE-S200 | 2″ | 2″ | 3/4″ | 3/4″ | .44 x .94 |
| F | G | H | J | K | L | M | N | P | Q |
|---|---|---|---|---|---|---|---|---|---|
| 4.25 | 2.12 | 8.50 | 11.12 | 4.88 | 8.50 | 17.20 | 3.18 | 7.37 | 3.00 |
Performance Data
| Performance Chart (Capacities in U.S. GPM) | |||||||
|---|---|---|---|---|---|---|---|
| Model | HP | 20 ft | 30 ft | 40 ft | 50 ft | 60 ft | 70 ft |
| BSE-S200 | 2 | 126 | 103 | 80 | 58 | 32 | 10 |

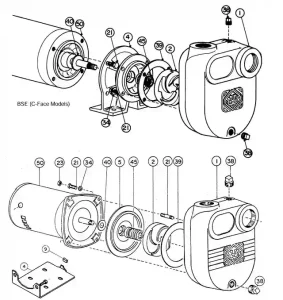

Repair Parts
| Ref. # | Part Code # | Qty Required | Description |
|---|---|---|---|
| 1 | 438029 | 1 | Casing – 2″ Sq. Fl. |
| 2 | 438131 | 1 | Impeller – 2 Hp Sq. Fl. |
| 4 | 438245 | 1 | Sq. Fl. Motor Mount |
| 5 | 438242 | 1 | Seal Plate Adapter – Sq. Fl. Motor |
| 9 | 246801 | 1 | End Cap |
| 21 | 164651 | 4 | Stud 3/8 UNC x 2 |
| 21 | 119990 | 8 | Bolt 3/8 UNC x 3/4 |
| 23 | 227830 | 4 | Nut 3/8 UNC |
| 34 | 176230 | 4 | Spring Washer |
| 35 | 174220 | 4 | Alum Washer |
| 38 | 185650 | 2 | Pipe Plug – 3/4 NPT |
| 39 | 193930 | 1 | Gasket (Specific to S150/S200) |
| 40 | 191790 | 1 | Flinger |
| 45 | 240104 | 1 | Seal 5/8 I.D. Type A (Verify Type) |
| 45 | 240316 | 1 | Seal 5/8 I.D. Type B (Verify Type) |
| 50 | 204186 | 1 | Motor – 2 Hp – 230V – Sq. Fl. |
Frequently Asked Questions
What is the maximum flow rate of the BSE-S200?
The BSE-S200 is capable of pumping up to 126 Gallons Per Minute (GPM) at 20 feet of head, making it the highest capacity pump in the S-series.
Can I run the BSE-S200 on 115V power?
While the pump specs indicate 115/230V capability, 2 HP motors draw significant amperage on 115V. It is strongly recommended to run this unit on a 230V circuit for efficiency and motor longevity. The replacement motor part is listed as 230V.
Does this pump require a check valve?
The pump is self-priming after the initial fill, but for optimal performance and to keep the casing full between uses, a foot valve or check valve on the suction line is highly recommended.
What distinguishes the S200 from the S150?
The S200 has a more powerful 2 HP motor compared to the 1.5 HP of the S150. It also has a slightly longer overall length (Dimension M) and uses a different impeller (Code 438131) to achieve higher flow rates.
