Monarch BSEF-300TE Electric Motor Driven Self Priming Pump & Repair Parts
Efficient Ag-Chemical Transfer: The Monarch BSEF-300TE

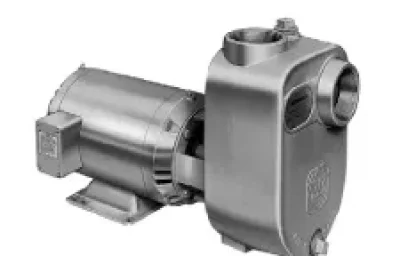

The Monarch BSEF-300TE Electric Motor Driven Self Priming Pump is a versatile and durable solution for handling liquid agricultural chemicals and general water transfer. Powered by a 3 HP Totally Enclosed Fan Cooled (TEFC) motor, this pump is engineered to perform reliably in environments where dust, moisture, and weather are factors.
Designed with the needs of the agricultural industry in mind, the BSEF-300TE is excellent for pumping liquid fertilizers, including nitrogen and phosphorous solutions. It features a rugged cast iron construction and a specialized mechanical seal made of stainless steel and Viton bellows. This seal composition ensures that the pump can safely handle weed control chemicals and other aggressive fluids without premature failure.
Key Features and Benefits
- Reliable 3 HP TEFC Motor: The Totally Enclosed Fan Cooled motor protects internal components from dirt and moisture, ensuring long operational life (Standard 230V, Single Phase).
- Corrosion-Resistant Impeller: The semi-open cast iron impeller features a blind-hole tapped design. This prevents the liquid from coming into contact with the motor shaft, effectively eliminating shaft corrosion.
- Chemical Compatibility: Equipped with a Viton and stainless steel mechanical seal, specifically chosen for its resistance to harsh agricultural chemicals and fertilizers.
- Self-Priming Efficiency: A large casing chamber allows for rapid priming. The unit includes a priming plug designed to fit a standard garden hose for easy filling.
- Versatile Applications: With 2-inch NPT suction and discharge ports, this pump balances high pressure with substantial flow volume, making it ideal for spraying and dewatering.
Common Applications
- Liquid Fertilizer Pumping: Efficiently moves nitrogen and phosphorous solutions.
- Herbicide & Pesticide Transfer: Viton seals provide necessary chemical resistance.
- Lawn & Sprinkler Systems: High pressure output supports irrigation networks.
- General Dewatering: Capable of pumping dirty water from sumps or trenches.
Technical Specifications
| General Specifications | |
|---|---|
| Model Number | BSEF-300TE |
| Order Number | 616896 |
| Horsepower (HP) | 3 HP |
| Suction / Discharge | 2″ NPT x 2″ NPT |
| Motor Type | TEFC (Totally Enclosed Fan Cooled) |
| Electrical Characteristics | 1 Phase / 60 Hz / 230V |
| Shipping Weight | 77 lbs |
| Impeller Design | Semi-open, Cast Iron |
| Seal Type | Stainless Steel with Viton Bellows |
Dimensions
| Model | Discharge (A) | Suction (B) | Priming Plug (C) | Drain Holes (D) | Mounting (E) |
|---|---|---|---|---|---|
| BSEF-300TE | 2″ | 2″ | 3/4″ | 3/4″ | .35 x 1.22 |
| F | G | H | J | K | L | M | N | P | Q |
|---|---|---|---|---|---|---|---|---|---|
| 4.25 | 2.13 | 8.60 | 11.10 | 4.25 | 8.50 | 15.90 | 3.20 | 5.93 | – |
Hydraulic Performance Data
| Performance Chart (Capacities in U.S. GPM) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | HP | 20 ft | 30 ft | 40 ft | 50 ft | 60 ft | 70 ft | 80 ft |
| BSEF-300TE | 3 | 138 | 130 | 120 | 100 | 79 | 55 | 25 |

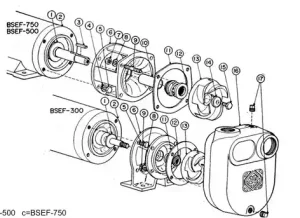

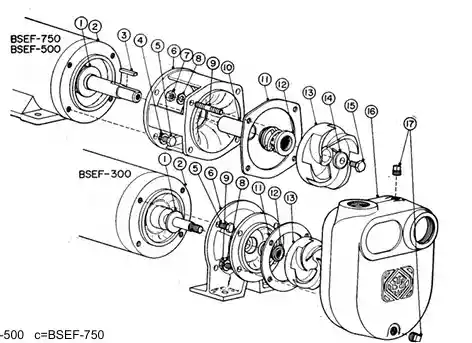

Repair Parts
| Ref. # | Part Code # | Qty Required | Description |
|---|---|---|---|
| 1 | 191790 | 1 | Flinger |
| 2 | 204200 | 1 | Motor, 3 HP 230V |
| 3 | 432050 | 1 | Key |
| 4 | 176230 | 4 | Spring Washer, 3/8″ |
| 5 | 119990 | 4 | Bolt, 3/8″ UNC x 3/4″ |
| 6 | 438482 | 1 | Adapter |
| 7 | 227830 | 4 | Nut, 3/8″ UNC ZNPL |
| 8 | 176230 | 4 | Spring Washer, 3/8″ ZNPL |
| 9 | 172971 | 4 | Stud, 3/8″ UNC x 1 1/4″ |
| 11 | 193930 | 1 | Gasket |
| 12 | 240316 | 1 | Mechanical Seal, 5/8″ I.D. |
| 13 | 438140 | 1 | Impeller |
| 14 | 414148 | 1 | Collar |
| 15 | 124191 | 1 | Bolt, 3/8″ UNC x 3/4″ Stainless Steel |
| 16 | 438057 | 1 | Casing (Yellow) |
| 17 | 185650 | 2 | Pipe Plug, 3/4″ NPT |
Frequently Asked Questions
What size ports does the BSEF-300TE have?
The BSEF-300TE features a 2-inch NPT Suction port and a 2-inch NPT Discharge port.
Is the BSEF-300TE compatible with liquid fertilizers?
Yes, this pump is specifically designed for agricultural applications. It uses a stainless steel and Viton mechanical seal to resist corrosion from nitrogen and phosphorous fertilizer solutions.
Does this model have a shaft sleeve?
No, the BSEF-300 model does not utilize a replaceable shaft sleeve. The impeller is blind-hole tapped to prevent liquid from contacting the motor shaft directly.
What is the electrical requirement for this pump?
The standard BSEF-300TE requires a Single Phase, 230V power connection. Always check the motor nameplate before installation.
