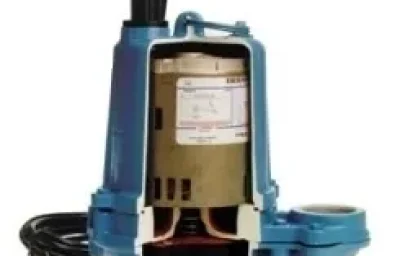

Monarch Industries Submersible Sewage Pump WS31 Series: Heavy-Duty Submersible Effluent Pumps
The Monarch Industries Submersible Sewage Pump WS31 Series represents the gold standard in submersible effluent and sewage pumping. Designed for durability and performance, these pumps are engineered to handle the rigorous demands of residential and light commercial wastewater applications. Whether you are replacing a WS31, WS30, or upgrading to a WS50 model, this series offers rugged construction and reliable operation.
Ideal for liquid effluent pumping and applications requiring the movement of solids up to 11/16″ (WS30/31) or 3/4″ (WS50/100) in diameter, the WS Series is built to last. The motor and pump housing are cast from Class 30 Cast Iron, providing superior heat dissipation and structural integrity compared to thermoplastic alternatives.
Key Features and Construction
- Rugged Construction: Motor and pump housing are manufactured from Cast Iron Class 30 for long-term durability.
- Non-Clog Impeller: Features a Cast Iron Class 30 solids-handling impeller. The WS30/WS31 series utilizes a three-vane design, while the WS50, WS50H, and WS100H utilize a two-vane design to prevent clogging.
- Superior Sealing: Equipped with a mechanical carbon/ceramic Type 6, 5/8″ rotary seal to ensure a watertight motor compartment.
- Corrosion Resistant: The motor shaft is crafted from 416 stainless steel, and all fasteners are stainless steel for easy serviceability.
- Protected Motor: The oil-filled chamber provides excellent cooling and includes automatic overload protection. The capacitor start design ensures high torque, and single-phase models feature automatic reset thermal protection.
- Versatile Operation: Available with a mercury-free float switch for automatic on-off operation. Options include piggyback style (WS30) or SJE Pump Master (WS50, WS50H, WS100H).
- Discharge: Standard 2″ NPT discharge. An optional adaptor kit is available for 3″ NPT requirements.
Common Applications
- Septic Systems: Moving effluent from septic tanks to leach fields.
- Basement Drainage: Reliable sewage ejection for below-grade bathrooms.
- Light Commercial: Waste handling for small business facilities.
- Dewatering: General transfer of water containing small solids.
Technical Specifications & Performance
The following tables detail the performance capabilities and physical specifications of the WS Series.
Performance Chart (Capacity in U.S. GPM)
| Model No. | RPM | 5′ | 10′ | 15′ | 20′ | 25′ | 30′ | 40′ | 50′ | 60′ | 70′ | 80′ | Shut-Off Head (ft.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WS30 | 1750 | 105 | 90 | 70 | 45 | 15 | – | – | – | – | – | – | 28 |
| WS50 | 3450 | 105 | 92 | 80 | 64 | 50 | 42 | – | – | – | – | – | 42 |
| WS50H | 3450 | 115 | 98 | 78 | 57 | 30 | 0 | – | – | – | – | – | 63 |
| WS100H | 3450 | 150 | 140 | 128 | 115 | 97 | 76 | 53 | 27 | 0 | – | – | 90 |
Model Specifications
| Model No. | Order No. | HP | Volts | SFA | Phase | Solids Handling | Ship Wt. (lbs.) | Switch | Cord Length |
|---|---|---|---|---|---|---|---|---|---|
| WS30M | 620010 | 1/3 | 115 V | 10.4 | 1 | 11/16″ | 51 | Manual | 20′ |
| WS30AM | 620000 | 1/3 | 115 V | 10.4 | 1 | 11/16″ | 53 | Automatic | 20′ |
| WS50M-20 | 620231 | 1/2 | 115V | 11.6 | 1 | 3/4″ | 55 | Manual | 20′ |
| WS50AM-20 | 620233 | 1/2 | 115V | 11.6 | 1 | 3/4″ | 57 | Automatic | 20′ |
| WS50M-12-20 | 620251 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50AM-12-20 | 620253 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 58 | Automatic | 20′ |
| HIGH HEAD SUBMERSIBLE EFFLUENT PUMPS – AUTOMATIC AND MANUAL | |||||||||
| WS50HM-20 | 620218 | 1/2 | 115 V | 15.0 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50HAM-20 | 620219 | 1/2 | 115 V | 15.0 | 1 | 3/4″ | 58 | Automatic | 20′ |
| WS50HM-12-20 | 620220 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50HAM-12-20 | 620221 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 58 | Automatic | 20′ |
| WS100HM-12-20 | 620222 | 1 | 208-230V | 13.6 | 1 | 3/4″ | 57 | Manual | 20′ |
| WS100HAM-12-20 | 620223 | 1 | 208-230V | 13.6 | 1 | 3/4″ | 59 | Automatic | 20′ |
| WS100HM-32 | 620207 | 1 | 208-230V | 6.2 | 3 | 3/4″ | 62 | Manual | 30′ |
| WS100HM-34 | 620206 | 1 | 460 V | 3.1 | 3 | 3/4″ | 62 | Manual | 30′ |
Dimensions (Inches)
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| WS30 | 1.75 | 11.25 | 3.75 | 1 | 12.25 | 4.86 | 9.38 |
| WS50 | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |
| WS50H | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |
| WS100H | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |

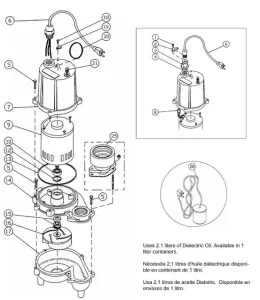

Repair Parts List: WS Series (Standard Models)
Use this table to identify parts for WS30, WS31, WS41, WS51, and WS52 models. Please refer to the column headers (a-h) to match your specific model.
Model Key:
- a: 30AM, 30M, 31EA, 31EM
- b: 41AM, 41M, 41SA, 41SM
- c: 51AM, 51M, 51SA, 51SM
- d: 52AM, 52M, 52SA, 52SM
- e: 30AM, 30M, 31EA, 31EM
- f: 41AM, 41M
- g: 51AM, 51M
- h: 52AM, 52M
| Ref # | Code # | a | b | c | d | e | f | g | h | Description |
|---|---|---|---|---|---|---|---|---|---|---|
| 1** | 149413 | 2 | 2 | 2 | 2 | Screw #10 x 3/4 SST | ||||
| 2** | 246331 | 1 | 1 | 1 | 1 | Clamp | ||||
| 3** | 246330 | 1 | 1 | 1 | 1 | Adapter | ||||
| 4 | 198080 | 1 | 1 | 1 | 1 | O-ring 1 3/8 I.D. | ||||
| 5 | 225820 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | Bolt 5/16″ UNC x 1-1/4″ SST |
| 6 | 225076 | 1 | 1 | 1 | 1 | 1 | Cord 20 ft. | |||
| 6** | 255051 | 1 | 1 | 1 | 1 | Cable, 20 ft. | ||||
| 7 | 493541 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Housing |
| 8** | 225055 | 1 | 1 | 1 | 1 | Plug assembly | ||||
| 9 | 223150 | 1 | Motor 1/3 HP | |||||||
| 9 | 223151 | 1 | 1 | 1 | Motor 1/2 HP | |||||
| 9 | 223160 | 1 | Motor 1/3 HP | |||||||
| 9 | 223161 | 1 | 1 | 1 | Motor 1/2 HP | |||||
| 10 | 110110 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | Bearing |
| 11 | 620581 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | Insulating Oil (Liters) |
| 12 | 137911 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Retaining Ring |
| 13 | 196994 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | O-Ring, Square |
| 14 | 493552 | 1 | 1 | 1 | 1 | Adapter | ||||
| 14 | 493563 | 1 | 1 | 1 | 1 | Adapter | ||||
| 15 | 240160 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Mechanical Seal, 5/8″ I.D. |
| 16 | 493223 | 1 | Impeller (Type A) | |||||||
| 16 | 493222 | 1 | 1 | Impeller (Type B & C) | ||||||
| 16 | 493224 | 1 | 1 | Impeller | ||||||
| 16 | 493225 | 1 | 1 | Impeller | ||||||
| 16 | 493870 | 1 | 1 | Impeller | ||||||
| 17 | 493553 | 1 | 1 | Volute | ||||||
| 17 | 493554 | 1 | 1 | Volute | ||||||
| 17 | 493555 | 1 | 1 | Volute | ||||||
| 17 | 493557 | 1 | 1 | Volute | ||||||
| 18 | 144432 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Screw #10 x 3/8 SST |
| 19 | 116842 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Clamp |
| 20 | 246316 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Split Coil Ring, 2.75 O.D. SST |
| 21 | 186220 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Plug 1/4″ NPT Brass |
| 25 | 620385 | Accessory | 3″ Adapter Kit | |||||||
| 26 | 206616 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Float switch |
Repair Parts List: WS Series (Large/High Head Models)
Replacement parts for WS50H, WS100H, WS52, WS102, and similar high-head variants.
Model Key:
- a: WS102M-12, WS102AM-12, WS102M-32, WS102M-34, WS102M-35
- b: WS52HM, WS52HAM
- c: WS52HM-12, WS52HAM-12
- d: WS102HM-12, WS102HAM-12
- e: WS102M-12, WS102AM-12
- f: WS102M-32, WS102M-34
| Ref # | Code # | a | b | c | d | e | f | Description |
|---|---|---|---|---|---|---|---|---|
| 1* | 225108 | 1 | 115V, 30 ft. (SJOW-A 14/3) | |||||
| 1* | 225064 | 1 | 1 | 230V, 20 ft. (SJOW-A 16/3) | ||||
| 1* | 225116 | 1 | 1 | 3 Phase Cords (without plug) 30 ft. | ||||
| 2 | 639606 | 1 | Float Switch 115V, 20 ft. | |||||
| 2 | 639607 | 1 | 1 | Float Switch 115V, 30 ft. | ||||
| 2 | 639604 | 1 | 1 | Float Switch 230V, 30 ft. | ||||
| 3 | 144432 | 1 | 1 | 1 | 1 | 1 | 1 | Screw #8 – 32 UNC x 3/8″ |
| 4 | 116842 | 1 | 1 | 1 | 1 | 1 | 1 | Clamp |
| 5 | 246316 | 1 | 1 | 1 | 1 | 1 | 1 | Split Coil Ring, 2.75 O.D. SST |
| 6 | 225820 | 10 | 10 | 10 | 10 | 10 | 10 | Bolt 5/16″ UNC x 1-1/4″ SST |
| 7 | 186220 | 1 | 1 | 1 | 1 | 1 | 1 | Plug 1/4″ NPT Brass |
| 8 | 620581 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | Insulating Oil (Liters) |
| 9 | 493543 | 1 | 1 | 1 | 1 | 1 | 1 | Housing |
| 10 | 238251 | 1 | Motor 1/2HP, 115/208-230V, 1PH. | |||||
| 10 | 238254 | Motor 1HP, 1PH., 115/208-230V | ||||||
| 11* | 110110 | 2 | 2 | 2 | 2 | 2 | 2 | Bearing (included with #10) |
| 12 | 137911 | 1 | 1 | 1 | 1 | 1 | 1 | Retaining Ring |
| 13* | 198994 | 1 | 1 | 1 | 1 | 1 | 1 | O-Ring, Square |
| 14 | 493552 | 1 | 1 | 1 | 1 | 1 | 1 | Adapter |
| 15* | 240160 | 1 | 1 | 1 | 1 | 1 | 1 | Mechanical Seal, 5/8″ I.D. |
| 16* | 493227 | 1 | 1 | 1 | Impeller | |||
| 16* | 493229 | 1 | 1 | 1 | Impeller | |||
| 17 | 493553 | 1 | 1 | 1 | 1 | 1 | 1 | Casing |
| 18 | 620385 | Accessory | Adapter Kit 3″ |
Frequently Asked Questions
What is the difference between Manual and Automatic WS pump models?
Automatic models (suffixed with “AM” or “HAM”) include a built-in float switch that automatically turns the pump on and off based on fluid levels. Manual models (suffixed with “M” or “HM”) require an external control panel or switch to operate.
What type of oil does the Monarch WS series use?
The WS series motors are oil-filled for cooling and lubrication. They use Dielectric Oil. The standard WS30/31/50 series requires approximately 2.1 liters, while the larger WS52/102 series requires 2.5 liters.
Does the WS31 model handle the same solids as the WS50?
No. The WS30 and WS31 models are designed for up to 11/16″ diameter solids. The larger WS50 and WS100 models are capable of handling up to 3/4″ diameter solids.
