⚠ DISCONTINUED MODEL — The Monarch Industries TT-30 pump has been discontinued. Genuine OEM repair parts remain available while supplies last. Pump Model is now replaced with the FMIT Series

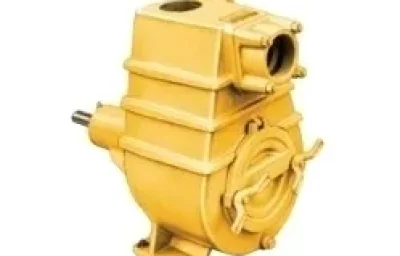

The Monarch Industries TT-30 Self-Priming Trash Pump is engineered for reliable performance in industrial, commercial, and marine environments where solids handling is critical. Order genuine Monarch Industries TT-30 repair parts below all OEM components shipped same-day while supplies last. Built from heavy-duty, all-iron construction, this trash pump ensures maximum durability and efficiency in even the toughest applications.
The cast gray iron casing features extra reinforcing ribs for added strength and a large capacity to ensure faster priming. Two heavy-duty sealed ball bearings guarantee smooth, long-lasting performance. Maintenance is made easy with the clean-out cover, which has wing nuts for quick removal without the need for wrenches.
A built-in check valve with threaded NPT suction inlet prevents syphoning and facilitates priming. The priming plug enables priming without removal of the discharge piping. A replaceable wear ring maintains pump efficiency over the life of the unit. The Viton / stainless steel / carbon-ceramic mechanical seal delivers reliable leak prevention under demanding conditions. The enclosed cast gray iron impeller with a two-vane design handles spherical solids up to 2″ in diameter the unique design eliminates the need for a wear plate, delivering higher efficiency.
TT-30 Specifications
| Specification | TT-30 |
|---|---|
| Order No. | 608931 |
| Pump Size (Suction & Discharge NPT) | 3″ |
| Solids Handling | 2″ |
| Shaft Diameter | 1¼” |
| Shaft Length | 3½” |
| Key Size | ¼” |
| Casing | Cast Gray Iron with Reinforcing Ribs |
| Impeller Type | Enclosed Cast Gray Iron, Two-Vane |
| Seal | Viton / Stainless Steel / Carbon-Ceramic |
| Shaft | Stainless Steel with Keyway |
| Bearings | Two Heavy-Duty Sealed Ball Bearings |
| Shipping Weight | 190 lbs |
Hydraulic Motor Adapter Kit – The Monarch Industries TT-30 features a 3″ NPT suction and discharge with 2″ spherical solids handling capacity — purpose-built for heavy industrial and marine pumping applications.
| Model | Hydraulic Adapter |
|---|---|
| TT-20 / TT-30 / TT-40 | 612881 — Includes bracket and coupling used to couple hydraulic motor with SAE J744C mounting flange to TT-40. |
Monarch Industries TT-30 Type A — Parts by Reference Number Use the table below to identify your Monarch Industries TT-30 replacement part by reference number. All genuine OEM parts ship while supplies last.
| Ref.# | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 416620 | 1 | Transmission Head |
| 2 | 436660 | 1 | Pump Casing |
| 3 | 416640 | 1 | Adapter Plate |
| 4 | 433990 | 1 | Impeller |
| 5 | 416660 | 1 | Intake Check Valve |
| 6 | 016670 | 1 | Weight |
| 7 | 013140 | 1 | Weight |
| 9 | 433900 | 1 | Clean-Out Cover |
| 10 | 426210 | 1 | Bearing Cover |
| 11 | 416700 | 1 | Seal Cover |
| 12 | 416711 | 1 | Shaft |
| 13 | 174450 | 1 | Washer |
| 14 | 433910 | 3 | Wing Nut |
| 17 | 433921 | 1 | Wear Ring |
| 23 | 191380 | 1 | Valve Rubber |
| 25 | 191390 | 1 | Gasket |
| 28 | 240359 | 1 | Seal, 1 1/2″ dia. |
| 29 | 226220 | 1 | Bolt, 3/8″ UNC x 1 1/4″ |
| 30 | 165251 | 6 | Stud, 1/2″ UNC x 2″ |
| 31 | 165320 | 4 | Stud, 1/2″ UNC x 3 1/2″ |
| 34 | 225760 | 1 | Bolt, 5/16″ UNC x 1 1/4″ |
| 35 | 147360 | 4 | Screw, 1/4″ UNC x 3/4″ |
| 36 | 148350 | 1 | Set Screw, 5/16″ UNC x 3/8″ |
| 37 | 110180 | 2 | Ball Bearing #6208-2RS |
| 38 | 110790 | 1 | Bearing Lock Nut #NO8 |
| 39 | 111190 | 1 | Bearing Lock Washer #WO8 |
| 40 | 227850 | 6 | Nut, 1/2″ UNC |
| 41 | 227850 | 4 | Nut, 1/2″ UNC |
| 42 | 227810 | 1 | Nut, 1/4″ UNC |
| 43 | 176520 | 4 | Spring Washer, 1/4″ |
| 45 | 185610 | 2 | Plug, 1/8″ NPT |
| 48 | 185650 | 1 | Plug, 3/4″ NPT |
| 50 | 185790 | 1 | Plug, 2″ NPT |
| 52 | 185620 | 1 | Plug, 1/4″ NPT |
| 53 | 432120 | 1 | Key |
| 60 | 165251 | 3 | Stud, 1/2″ UNC x 2″ |
| 61 | 198880 | 1 | “O” Ring #429 |
| N/S | 465100 | 1 | Strainer 3″ NPT |
Ordering Information
| IMPORTANT: | When ordering parts, specify the model and type (TT-30 Type A), code number, and part description. |
