Monarch Industries TT-60 Self-Priming Trash Pump Repair Parts
⚠ DISCONTINUED MODEL — The Monarch Industries TT-60 pump has been discontinued. Genuine OEM repair parts remain available while supplies last. Pump Model is now replaced with the FMIT Series
The Monarch Industries TT-60 Self-Priming Trash Pump is engineered for robust performance in demanding industrial, commercial, and marine applications. Its heavy-duty, all-iron construction ensures superior durability and consistent performance in solids handling environments. Order genuine Monarch Industries TT-60 repair parts below — all OEM components ship same-day while supplies last.

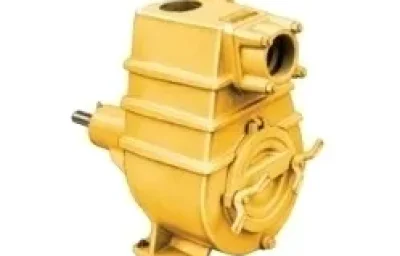

Monarch Industries TT-60 Self-Priming Trash Pump features a cast gray iron casing reinforced with extra ribs, providing added strength and a large capacity for quicker priming. Two heavy-duty sealed ball bearings ensure reliable, smooth operation even during extended use. The convenient clean-out cover is equipped with wing nuts, enabling easy removal for quick inspections or clean-out without the need for wrenches.
For easy maintenance, a priming plug allows for priming without disconnecting the discharge piping. The replaceable wear ring maintains pump efficiency, extending the lifespan of the unit. A built-in check valve with a threaded NPT suction inlet prevents siphoning and ensures faster priming, making setup straightforward and hassle-free.
The Monarch TT-60’s enclosed cast gray iron impeller features a two-vane design capable of handling spherical solids with ease. This unique design eliminates the need for a wear plate, resulting in improved efficiency and smoother operation. A high-quality seal system made of Viton, stainless steel, and carbon-ceramic ensures long-lasting protection against leaks, while the stainless steel shaft with a keyway delivers dependable, efficient performance. The Monarch Industries TT-60 is the largest pump in the Monarch TT Series, designed for high-volume industrial applications requiring maximum solids handling capacity.
Monarch Industries TT-60 Full Repair Parts List
Monarch Industries TT-60 Type A Parts by Reference Number. Use the table below to identify your Monarch Industries TT-60 replacement part by reference number. All genuine OEM parts ship while supplies last.
| Ref.# | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 465486 | 1 | Transmission Head |
| 2 | 465421 | 1 | Casing |
| 3 | 465487 | 1 | Seal Plate |
| 4 | 465485 | 1 | Impeller |
| 5 | 465440 | 1 | Suction Flange |
| 6 | 465450 | 1 | Top Weight |
| 7 | 465460 | 1 | Bottom Weight |
| 8 | 465481 | 1 | Clean-out Cover |
| 10 | 466280 | 1 | Bearing Cover |
| 11 | 465479 | 1 | Deflector |
| 12 | 465488 | 1 | Shaft |
| 13 | 471006 | 1 | Impeller Washer |
| 14 | 432940 | 3 | Wing Nut |
| 16 | 465466 | 1 | Sleeve |
| 17 | 465465 | 1 | Wear Ring |
| 23 | 193980 | 1 | Valve |
| 25 | 194050 | 1 | Gasket |
| 26 | 240352 | 1 | Crane Single Seal- Complete |
| 27 | 141000 | 1 | Special Self Locking Socket Head Cap Screw 5/8 UNC x 1 1/2″ |
| 30 | 165980 | 8 | Stud, 5/8 UNC x 3″ |
| 31 | 166480 | 8 | Stud, 3/4 UNC x 2-3/4″ |
| 34 | 226000 | 3 | Hex. Head Bolt, Zn. Pl. 5/16 UNC x 1 1/2″ |
| 35a | 120020 | 4 | Hex. Head Bolt 3/8 UNC x 1 1/4″ |
| 36 | 148310 | 1 | Socket Set Screw, Knurled 5/16 UNC x 1/2″ |
| 37a | 110330 | 1 | Ball Bearing #63142 |
| 37b | 110401 | 1 | Ball Bearing #3312/C3 |
| 38 | 110830 | 1 | Bearing Lock Nut #N12 |
| 39 | 111230 | 1 | Bearing Lock Washer #W12 |
| 40 | 128270 | 8 | Hex. Nut 5/8 UNC |
| 41 | 128290 | 8 | Nut 3/4 UNC |
| 42 | 227820 | 1 | Hex. Nut, Zn. Pl. 5/16 UNC x 1/2″ |
| 43 | 176230 | 3 | Spring Washer, Zn. Pl. 3/8″ |
| 45 | 110700 | 2 | Grease Fitting 1/4 NPT |
| 47 | 174480 | 3 | Plain Washer, 11/16 Hole |
| 48 | 185660 | 1 | Pipe Plug, Black 1 NPT |
| 50 | 185810 | 1 | Priming Plug |
| 52 | 185620 | 1 | Pipe Plug, Galv. 1/4 NPT |
| 53 | 466221 | 1 | Key |
| 60 | 165980 | 3 | Stud 5/8 UNC x 3″ |
| 61 | 197990 | 1 | “O” Ring #455 |
| 62 | 199330 | 1 | Oil Seal C/R #21098 |
| 63 | 176570 | 1 | Spring Washer, Zn. Pl. 5/8″ |
| 72 | 471014 | 1 | Key |
| 83 | 128290 | 1 | Hex. Nut 3/4 UNC |
| 85 | 166480 | 8 | Stud, 3/4 UNC x 2 3/4″ |
| 86 | 400780 | 1 | Companion Flange |
| 87 | 191930 | 1 | Gasket |
| 88 | 176580 | 16 | Spring Washer 3/4″ |
| 89 | 194110 | 1 | Gasket |
| 90 | 166490 | 2 | Stud, 3/4 UNC x 3″ |
Ordering Information
| IMPORTANT: | When ordering parts specify model, type, code and part number. |
