Monarch WS200GAM Series Submersible Grinder Pump
Monarch WS Series: Heavy-Duty Submersible Grinder Pumps

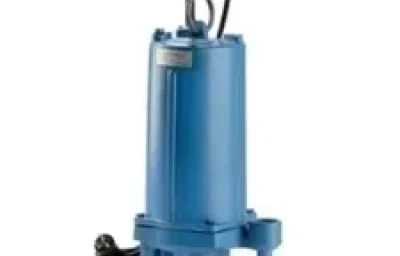

The Monarch WS200GAM Series Submersible Grinder Pump is a high-performance solution designed for demanding residential and light commercial sewage applications. Unlike standard sewage pumps that pass solids, this 2 HP powerhouse is equipped with a high-chrome steel cutting mechanism that shreds solids into a fine slurry, allowing for easy transport through smaller diameter discharge pipes (1 ¼” NPT).
Built for longevity and reliability, the WS Series features a rugged cast iron construction and a robust oil-filled motor. One of the standout features of the WS200GAM is its internal capacitor start design, which eliminates the need for expensive external control panels. It operates using a standard piggyback float switch, making installation straightforward and cost-effective.
Key Features and Construction
- Superior Grinding Technology: Features a high chrome steel two-blade cutter with a hardness of 55 – 58 Rockwell C. The stationary cutter ring is reversible for extended service life and can be replaced without dismantling the pump.
- Robust Build: The motor and pump housing are constructed from durable cast iron. All external fasteners are made from 304 stainless steel to resist corrosion.
- Powerful Motor: Equipped with a 2 HP, single-phase, 230 Volt capacitor start oil-filled motor. It includes automatic thermal overload protection and upper/lower ball bearing construction.
- No Control Panel Required: This pump is designed to be used with a regular piggyback style float switch (rated for 2 HP 1/230V), simplifying maintenance and reducing installation costs.
- Advanced Sealing: Utilizes hard Silicon Carbide seal faces and NBR elastomers for long life and abrasion resistance.
- Impeller Design: Features a ductile iron, recessed, semi-open impeller with pump-out vanes specifically designed for mechanical seal protection.
- Shaft: Corrosion-resistant 410 Stainless Steel shaft.
- Power Cord: 20 ft., 14/3 SJTW power cord sealed at the motor housing to prevent moisture intrusion.
Common Applications
- Residential Sewage Systems: Grinding household waste for pressure sewer systems.
- Light Commercial: Small business locations requiring sewage ejection.
- High-Head Applications: Pumping waste over long distances or high vertical lifts where standard solids-handling pumps fail.
Technical Specifications & Performance
The following table details the specifications for the WS Series Grinder Pumps.
Submersible Grinder Pumps – Automatic and Manual
| Model No. | Order No. | HP | Volts | SFA | Phase | Ship Wt. (lbs.) | Switch | Cord Length |
|---|---|---|---|---|---|---|---|---|
| WS200GM | 620265 | 2 | 230 | 15.0 | 1 | 73 | Manual | 20′ |
| WS200GAM | 620266 | 2 | 230 | 15.0 | 1 | 75 | Automatic | 20′ |

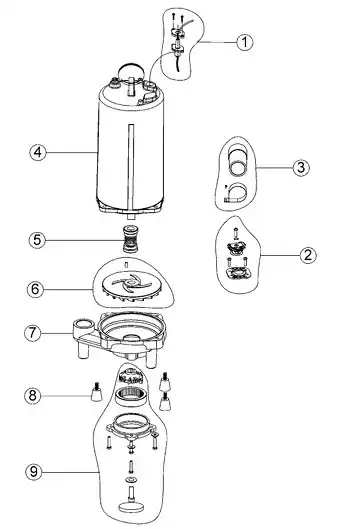

Repair Parts List (WS200GM, WS200GAM)
Use the table below to identify replacement parts for the WS200G Series.
| Ref. | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 246218 | 1 | Cord |
| 2** | 246219 | 1 | Centrifugal switch |
| 3** | 246220 | 1 | Capacitor |
| 4 | 246221 | 1 | Housing assembly |
| 5 | 246222 | 1 | Mechanical Seal |
| 6 | 246223 | 1 | Impeller/ key assembly |
| 7 | 246224 | 1 | Casing |
| 8 | 246225 | 3 | Rubber foot |
| 9 | 246226 | 1 | Cutter ring assembly |
| N/S | 206609 | 1 | Float switch |
| N/S* | 620581 | 2.5 | Insulating oil |
