ALUMINUM SEMI TRASH PUMPS

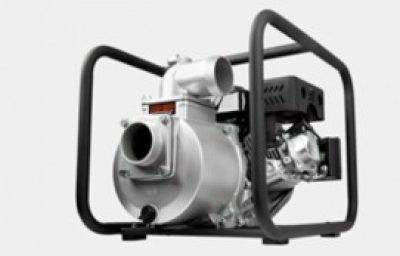

Red Lion 6RLAG-2LST ALUMINUM SEMI TRASH PUMPS

request a quote

APPLICATIONS

Ideal for high volume transfer and de-watering. Can handle liquid slurries including sand, pebbles, and suspended solids less than 1/2″ in diameter.

FEATURES & BENEFITS

  • Durable cast iron semi-open style impeller
  • Lightweight aluminum outer casing: includes heavy-duty rollframe
  • Wear resistant silicon carbide mechanical seal
  • Self-priming to 25′ of suction lift
  • Built-in check valve
  • EPA certified
  • Repair kits available
Click to rate this post!
[Total: 1 Average: 5]

Exploded parts

replacement-part-6RLAG-2LST

REPLACEMENT PARTS

6RLAG-2LST REPLACEMENT PARTS/ 6RLAG-2LST Repair parts
ITEM # DESCRIPTION CONTENTS
617301 6RLAG-2LST Minor repair kit 9, 11, 15, 36, 37, 38, 39
617311 6RLAG-2LST Major repair kit 9, 11, 12, 13, 14, 15, 36, 37, 38, 39, 40
617322 6RLAG-2LST Casing kit 8, 10, 11, 16, 17, 25, 33, 34, 35, 39
617330 6RLAG-2LST Accessory Kit 31, 32
617342 6RLAG-2LST Suction and discharge flange kit 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 31, 32
617352 6RLAG-2LST Rollframe assembly

1, 2, 3, 4, 6, 7, 16, 17

INTRODUCTION

This is an engine-driven transfer pump for use in general de-watering applications and is suitable for pumping clear water. Do not use the pump in applications where sewage or any other debris (gravel, sand, floating debris, etc.) or corrosives are present. This instruction sheet provides you with the information required to safely own and operate your product. Retain these instructions for future reference. The product you have purchased is of the highest quality workmanship and material, and has been engineered to give you long and reliable service. This product has been carefully tested, inspected, and packaged to ensure safe delivery and operation. Please examine your item(s) carefully to ensure that no damage occurred during shipment. If damage has occurred, please contact the place of purchase. They will assist you in replacement or repair, if required.

APPLICATION

Use this pump for water only, where the vertical suction head from the water level is 25 ft (8 m) or less. Do not exceed the maximum suction head. Head refers to the height of a column of water that can be delivered by the discharge of the pump (Figure 1). Suction head (or suction lift) is the vertical distance between the center of the pump and the surface of the liquid on the suction side of the pump. Discharge head is the vertical distance between the pump’s discharge port and the point of discharge. Total head is the sum of the suction head and the discharge head. The elevation above sea level and friction losses must be taken into consideration.

Product Info

Model Warranty Item Number UPC cc Intake Discharge Suction Lift Max Head Max Flow GPM Fuel Tank (qt) Engine
6RLAG-2LST 2 Year 617034 0 10121 14503 0 208cc 2″ MNPT 2″ MNPT 25′ 92 150 3.8 4 Stroke OHV (208cc)

Carton Specifications

Model Length Width Height Weight (lbs) Carton Cubes (cu ft) Pallet Quantity Qty. per Layer Layers per Pallet
6RLAG-2LST 17.5″ 20″ 16.5″ 52 3.70 8 4 2

SPECIFICATIONS

Model 6RLAG-2LST
Engine Air Cooled, 4 Stroke, OHV, 208 cc
Performance 6.5 HP @ 3600 rpm
Fuel Type Refer to engine manufacturer’s owner’s manual
Oil Type Refer to engine manufacturer’s owner’s manual
Shut Off 92 ft (28.0 m)
Suction head (max.) 25 ft (7.62 m)
Intake Size 2″ MNPT (5.08 cm)
Discharge Size 2″ MNPT (5.08 cm)
Maximum Flow 150 GPM (568 LPM)
Weight 60 Lb (27.2 kg)
Height 15.5″ (39.4 cm)
Width 14.5″ (36.8 cm)
Length 18.0″ (45.7 cm)
