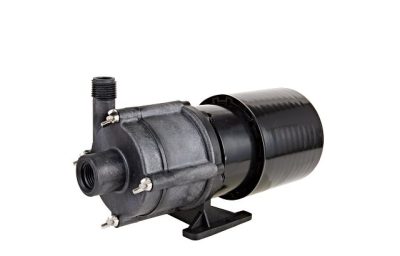

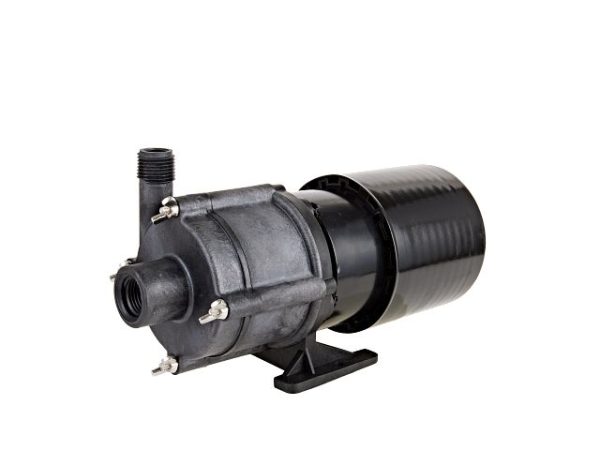

TE-3-MD-HC Series Magnetic Drive Pump
Click to rate this post!
[Total: 0 Average: 0]
Operating reliability and flexibility are the hallmarks of the Little Giant TE-3-MD-HC Series chemical transfer pumps. Typical industrial applications include corrosive solutions and solvents with high abrasive concentrations. This pump also features a 1/25 hp enclosed, fan-cooled (TEFC) motor for added safety and heavy-duty performance.
Features & Benefits
- 1/25 hp TEFC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
- Run dry capability up to 8 hours
Overview
The TE-3-MD-HC’s motor is totally enclosed fan-cooled (TEFC) for use in dusty, dirty, and damp environments. The glass-filled polyphenylene sulfide magnet housing and volute components provide an added layer of protection and strength. Magnets turn the impeller to eliminate seal wear and leakage. The result is a long service life that’s important when dealing with highly corrosive fluids.
Specifications
| Capacity | 9.8 gpm @ 1′ |
| Shut Off | 16.3′ (4.9 m) |
| Max. Liquid Temp. | 200 °F (93.3 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 60 Hz, 1.3 A 230 V, 50/60 Hz, 1.1/0.8 A |
Performance
115 or 230 V, 60 Hz
| Head | GPM (LPM) |
| 1′ | 9.8 (37.1) |
| 3′ | 9.2 (34.8) |
| 6′ | 8.1 (30.7) |
| 9′ | 6.5 (24.6) |
| 15′ | 2.6 (9.8) |
