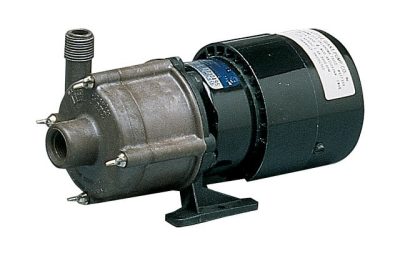

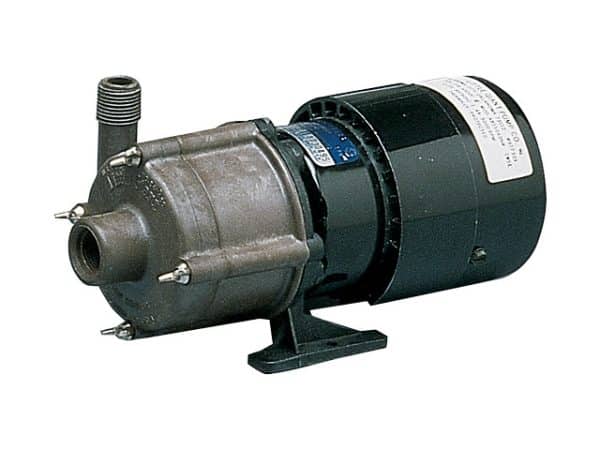

581604 – TE-3-MD-HC
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton®), Viton®, carbon and ceramic parts. Thermally protected totally enclosed fan-cooled motor with ball bearings. 6 ft power cord and 3-prong molded plug.
| Item: | 581604 |
| Model: | TE-3-MD-HC |
Ratings |
|
| HP | 1/25 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 1.3 A |
| Full Load Watts | 107 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 9.75 gpm / 585 gph |
| Shut-Off | 16.3 ft |
| Max PSIG – 60Hz | 7.1 PSI |
Liquid |
|
| Max Fluid Temperature | 200 °F |
Materials of Construction |
|
| Discharge Head Material | Thermoplastic |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.9 “ |
| Product Width | 4 “ |
| Product Height | 5 “ |
| Product Weight | 8.8 lb |
| Product Weight w/ Pack | 8.5 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
