UPSP Series Utility Pump

Click to rate this post!

[Total: 0 Average: 0]

Generating an impressive 62.9 PSI, the UPSP Series is power-packed when it comes to pressure boosting. This multipurpose pump is ideal for use in washing vehicles, flooded basements, watering lawns cleaning driveways/ sidewalks, draining water heaters, and more.

Features & Benefits

1/2 horsepower motor
1600 GPH maximum capacity at 20′
Solid cast iron construction
Self-priming to 15′ (4.6m) when priming chamber is filled
Includes 3/4″ brass garden hose adapters on intake and discharge
Contains an 8′ power cord

Overview

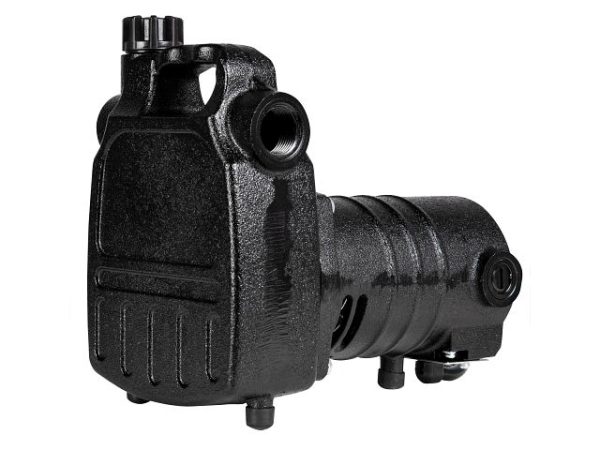

The UPSP Series is a portable, non-submersible utility pressure boosting pump made of durable cast-iron construction throughout and includes a thermoplastic impeller for effortless water flow and efficiency. An integral carrying handle makes transporting easy. Designed to resist up to 140 °F (60 °C) liquid temperatures, the UPSP Series is the preferred choice for utility pressure boosting applications.

Specifications

Capacity	1600 gph @ 20′
Shut Off	145′ (44 m)
Max. Liquid Temp.	140 °F (60 °C)
Intake / Discharge	3/4″ (19mm) brass garden hose adapter
Impeller	Thermoplastic
Electrical	115 V, 60 Hz, 10 A
Operation	Self-Priming

Performance

Head	GPH (LPH)
20′	1600 (6057)
40′	1400 (5300)
60′	1200 (4542)
80′	1000 (3785)
100′	800 (3028)
