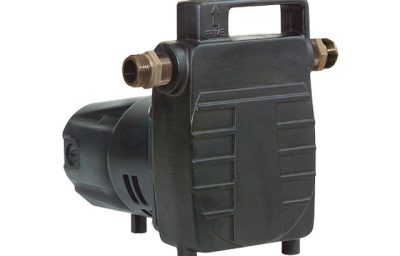

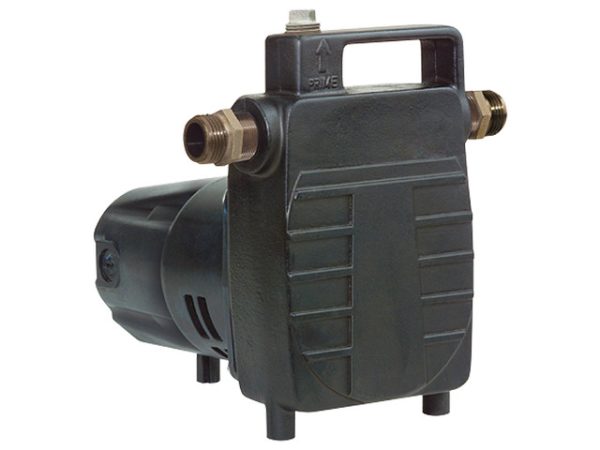

The UPSP-5 Series portable utility transfer pump is perfect for intermittent duty, moving water from one location to another. The pump can be used to pump water from flooded basements, watering lawns and gardens, and draining water heaters. The pump can also be used to boost water pressure for washing vehicles, sidewalks and more. Includes 115V, 1/2 hp and 10′ cord.
| Item: | 555104 |
| Model: | UPSP-5 |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 9.2 A |
| Full Load Watts | 900 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Maximum Flow Rate – 60Hz | 26 gpm / 1560 gph |
| Shut Off Height – 60Hz | 144 ft |
| Max PSIG – 60Hz | 62 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Volute Material | Cast Iron |
| Impeller Material | Thermoplastic |
| Discharge Material | Cast Iron |
| Seal Material | Carbon/Ceramic, Nitrile |
Installation |
|
| Discharge | 0.75 “ |
| Product Length | 10 “ |
| Product Width | 6 “ |
| Product Height | 9 “ |
| Pump Length | 10 “ |
| Product Weight | 20 lb |
| Product Weight w/ Pack | 21.25 lb |
| Carton Length | 12 “ |
| Carton Width | 8 “ |
| Carton Height | 10 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
| Repair Kit Available | Yes |
