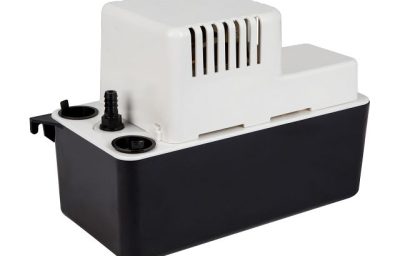

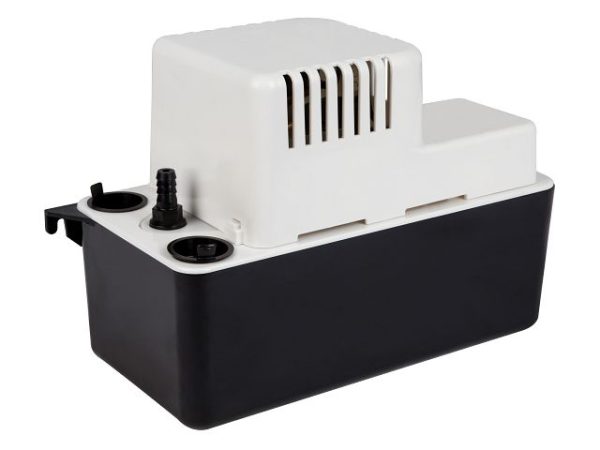

VCMA-15 Series Condensate Pump
Click to rate this post!
[Total: 0 Average: 0]
The VCMA-15 Series condensate pump is a 1/50 hp condensate pump that is great for collecting, detecting, and removing condensation from air conditioners. Its robust design is also suitable for high-efficiency gas furnace condensation and condensing boilers. Includes 1/2-gallon tank capacity.
Features & Benefits
- 1/50 hp high-performance motor pumps 65 gallons of water per hour
- ABS tank, motor cover, and volute
- Stainless steel motor shaft
- ½-gallon tank capacity
- 20′ of 3/8″ clear tubing (554411 & 554415 only)
- CSA certified to US and Canada standards
Overview
The VCMA-15 Series condensate pump provides a compact, vertical-type pump design with a safety switch and 15′ lift. It features a 6 ft. power cord and a 3/8″ O.D. barbed discharge adapter with built-in check valve. Three 1-1/8-” diameter inlet openings (two fitted with removal cap plugs) allow the condensate pump to be used with multiple types of equipment, including air conditioners and furnace systems.
Specifications
| Capacity | 65 gph @ 1′ |
| Shut Off | 15′ (4.6 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 3/8″ barbed (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1A |
| Operation | Automatic |
Performance
| Head | GPH (LPH) |
| 1′ | 65 (246.4) |
| 5′ | 50 (189.5) |
| 10′ | 25 (94.8) |
| 20′ | 0 (0) |
