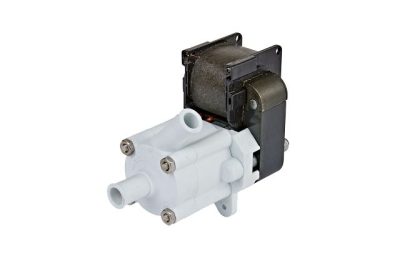

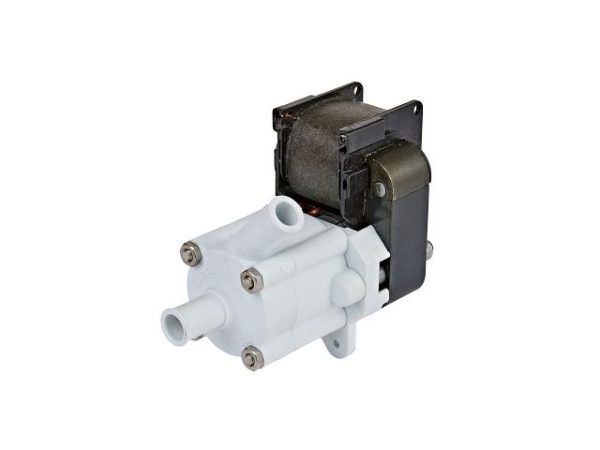

1-AA-MD Series Magnetic Drive Pump
Click to rate this post!
[Total: 0 Average: 0]
The 1-AA-MD is a magnetically driven pump that circulates mildly corrosive acids, alkalies, solvents, brine, plating solutions, and other mildly corrosive chemicals and solutions compatible with the pump’s material construction.
Features & Benefits
- 1/200 hp motor
- Uncoated impeller magnet
- Glass-filled polypropylene magnet housing and volute
- 160 gph flow at 1′ head
- Stainless steel shaft
- Continuous duty
Overview
Designed for in-line, non-submersible use, the 1-AA-MD is part of the MD Series of chemical transfer pumps featuring leakproof, seal-less magnetic drives. This model includes an open shaded-pole motor with sleeve bearings and impedance protection. It can handle temperatures up to 150 °F (66 °C).
Specifications
| Capacity | 162 gph @ 1′ |
| Shut Off | 5.4′ (1.6 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 1/2″ OD (12.7 mm) |
| Impeller | Glass-filled polypropylene & Ceramagnet “A” (Barium Ferrite) |
| Electrical | 115 V, 60 Hz, 0.4 A 230 V, 50/60 Hz, 0.2 A |
Performance
115 or 230 V, 60 Hz
| Head | GPH (LPH) |
| 1′ | 162 (613.2) |
| 3′ | 102 (386.1) |
