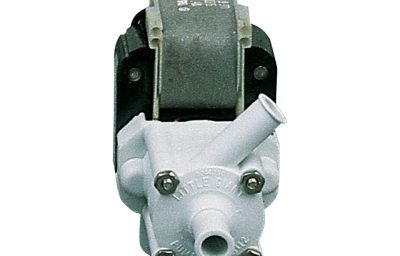

588001 – 1-AA
The MD Series features leakproof, seal-less magnetic drives and are designed for in-line, non-submerged use. Open-shaded-pole motor has sleeve bearings and is impedance protected. 3 ft. lead wires without a plug. Circulation of mildly corrosive acids, alkalies, solvents, brine, plating solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump’s material of construction.
| Item: | 588001 |
| Model: | 1-AA |
Ratings |
|
| HP | 1/200 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.4 A |
| Full Load Watts | 19 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 2.7 gpm / 162 gph |
| Minimum Flow Rate – 60Hz | 0 gpm / 0 gph |
| Shut-Off | 5.4 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 5.4 ft |
| Max PSIG – 60Hz | 2.4 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge | 0.5 “ |
| Suction | 0.5 “ |
| Product Length | 4.9 “ |
| Product Width | 2.4 “ |
| Product Height | 3.7 “ |
| Product Weight | 2.3 lb |
| Product Weight w/ Pack | 2.33 lb |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
