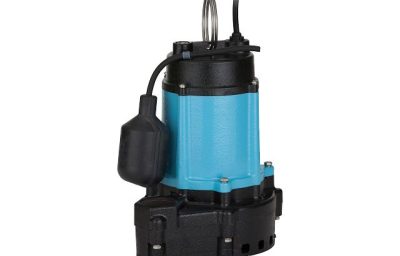

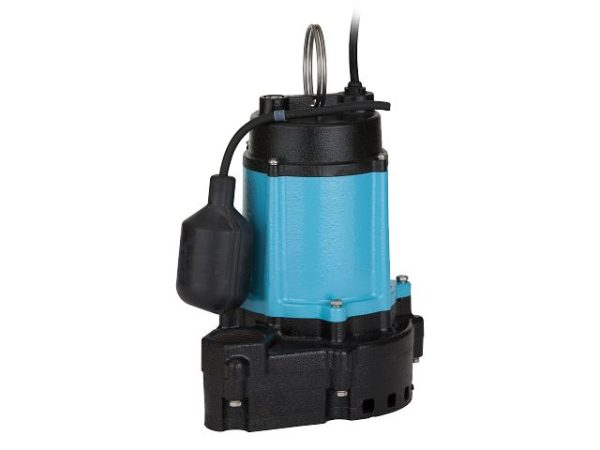

10EC Series Sump & Light Effluent Pump

Stock: Call for availability

Technical support: Yes

Shipping time: Same day

Shipping: USA and Canada

Talk to a pump specialist now: (303) 699-7845

Get a Fast Quote from a Pump Specialist

Click to rate this post!

[Total: 0 Average: 0]

When you need the best of both worlds, the 10EC Series of hybrids has the leverage to handle the most demanding sump and light effluent applications. Pumping to a leach field or drainage where a gravity feed is not possible can be tricky when transferring water. The 10EC Series is a great solution for applications relating to light septic or high flow sump.

Features & Benefits

1/2 hp high-speed PSC motor
Multiple switch designs; integrated snap-action float option for simple installation in small diameter basins
1/2″ solids-handling
Outperforms sump pumps of large horsepower
Polypropylene base models give you the choice to reduce weight and easier cleaning with removable intake screen

Overview

Constructed of epoxy-coated, heavy-duty cast iron and designed for continuous duty, the 10EC Series is a consistent performer for commercial sump and light effluent applications. Available with multiple switch options to fit according to basin size and depth or pump, the 10EC Series is the first line of defense against water damage in homes and businesses.

Specifications

Capacity	67 gpm @ 5′
Shut Off	36′ (11 m)
Max. Liquid Temp.	140 °F (60 °C)
Discharge	1-1/2″ (38.1 mm)
Impeller	Nylon
Electrical	115 V, 60 Hz, 6.5 A
Operation	Automatic or Manual

Performance

Head	GPM (LPM)
5′	67 (253.6)
10′	57 (215.8)
15′	53 (200.6)
20′	47 (177.9)
30′	28 (106)

Order Information
