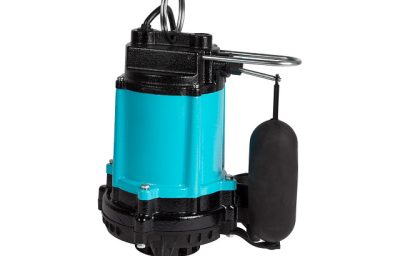

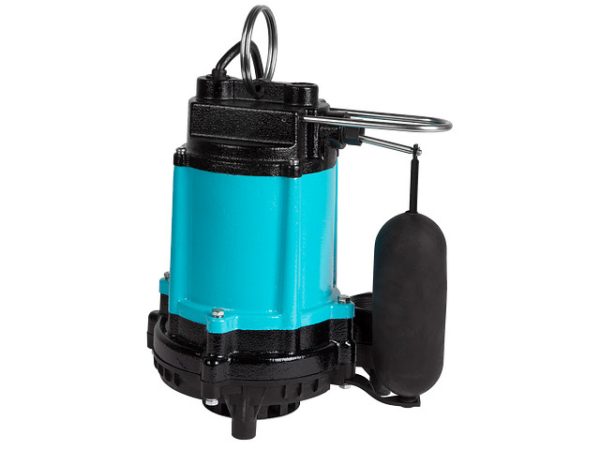

Little Giant’s 1/2 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch, 115 volt, 10′ cord, automatic operation with a snap action float switch for sump and light effluent applications.
| Item: | 510803 |
| Model: | 10EC-CIA-SFS |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 6.5 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 750 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 67 gpm / 4020 gph |
| Minimum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Rated Flow Rate – 60Hz | 67 gpm / 4020 gph |
| Shut-Off | 36 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 36 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.5 “ |
| Switch Type | Integral Snap-Action Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Check Valve | No |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Suction Type | Screened |
| Product Length | 10.66 “ |
| Product Width | 8.48 “ |
| Product Height | 11.28 “ |
| Pump Length | 10.66 “ |
| Product Weight | 30 lb |
| Product Weight w/ Pack | 30.65 lb |
| Carton Length | 9.5 “ |
| Carton Width | 11 “ |
| Carton Height | 13 “ |
| Off Level – Range | 2″ – 5″ |
| On Level – Range | 8″ – 11″ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Accessories / Repair Kits | 110970101, 110970102, 110970103, 110970104, 110970201, 110970202, 110970202, 110970301, 110970401, 110970402, 599118, 599210 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
