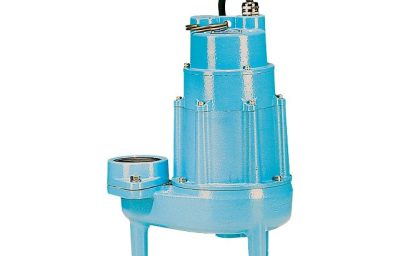

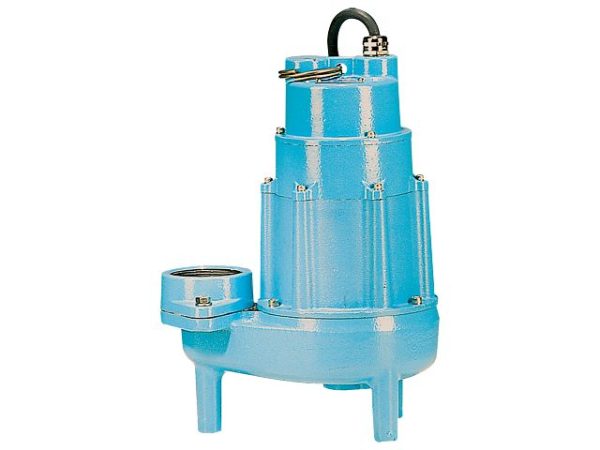

Little Giant’s 18S Series sewage pump is engineered to handle tough effluent and sewage water transfer applications where high performance is required. Recommended for use in sumps, basins, or lift stations, the 18S Series sewage pump is suitable for pumping sewage, effluent, wastewater, and other non-explosive, non-corrosive liquids with wide use in residential, commercial, industrial, and agricultural applications.
Little Giant’s 18S Series sewage pump boasts a powerful 1-1/2 horsepower, 3200 RPM motor that delivers 160 GPM of wastewater at 10′ total dynamic head. Heavy-duty cast iron construction and stainless steel hardware combine to offer excellent corrosion resistance, as well as the dependable performance Little Giant is famous for. This series also includes epoxy coated heavy-duty cast iron housing and volute, to ensure rust resistance, with all exposed component parts made of corrosion-resistant materials to provide a longer service life.
| Capacity | 160 gpm @ 10′ |
| Shut Off | 64′ (19.5 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 3″ FNPT (76.2 mm) |
| Impeller | Brass |
| Electrical | 208-230 V, 60 Hz, 16 A, Single-Phase 460 V, 60 Hz, 5.3 A, Three-Phase |
| Operation | Manual |
| Head | GPM (LPM) |
| 10′ | 160 (605.7) |
| 20′ | 137 (518.6) |
| 30′ | 111 (420.2) |
| 40′ | 84 (318) |
| 50′ | 50 (189.3) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 520300 | 18S-CIM | 208 VAC | Manual | 20 ft | 3 “ |
| 520301 | 18S-CIM | 208 VAC / 230 VAC | Manual | 20 ft | 3 “ |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 520302 | 18S-CIM | 208 VAC | Manual | 20 ft | 3 “ |
| 520303 | 18S-CIM | 230 VAC | Manual | 20 ft | 3 “ |
