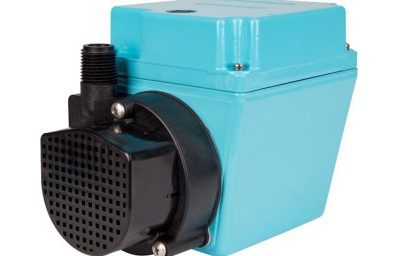

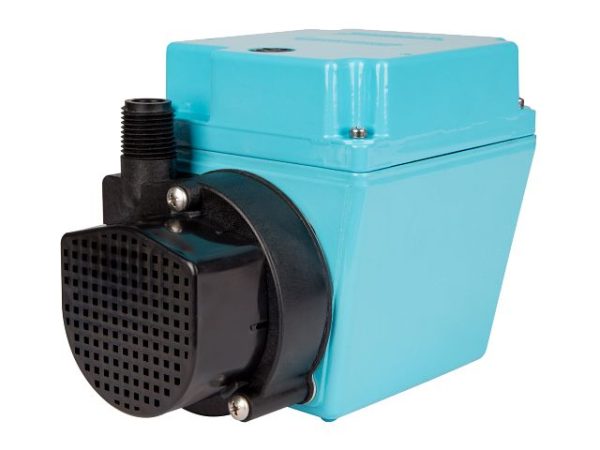

Little Giant’s 3E-12N Series small oil-filled submersible pump is a dual-purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial, and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where a small oil-filled submersible pump is needed to transfer or recirculate liquid
This compact 500 GPH small submersible pump features a 1/2″ MNPT discharge that accepts 3/4″ I.D. tubing. It comes with an oil-filled motor for added protection and product life expectancy. The 3E-12N small submersible pump is manufactured with an epoxy-coated cast aluminum housing and cover plus nylon volute. It also possesses a maximum lift of 17.3′.
| Capacity | 500 gph @ 1′ |
| Shut Off | 17.3′ (5.3 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 3.2 A |
| Head | GPH (LPH) |
| 1′ | 500 (1892.7) |
| 3′ | 435 (1646.7) |
| 5′ | 337 (1275.7) |
| 10′ | 210 (794.9) |
