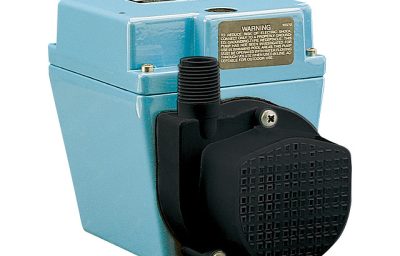

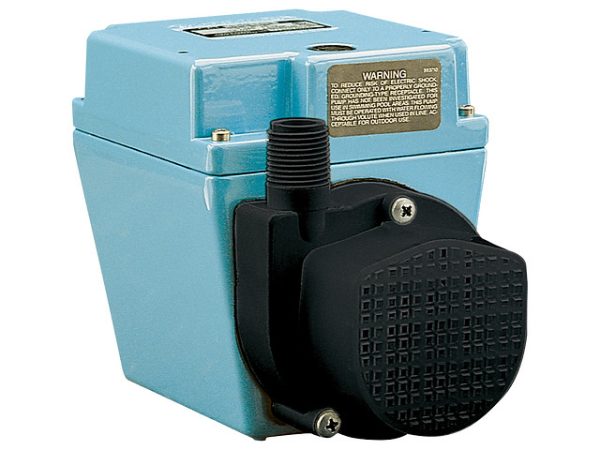

Little Giant 3E-12N Oil-Filled Submersible Pump, 3E-12N Series, 115V (503103)
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
Dual-purpose oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 500 GPH pump features a 1/2″ MNPT discharge and 17.3′ shut-off head capability.
| Item: | 503103 |
| Model: | 3E-12N |
Ratings |
|
| HP | 1/15 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 3.2 A |
| Full Load Watts | 200 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 8.33 gpm / 500 gph |
| Shut-Off | 17.3 ft |
| Shut Off Height – 60Hz | 17.3 ft |
| Max PSIG – 60Hz | 7.5 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Intake Screen Material | Polypropylene |
| Seal Material | Viton |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction | 0.5 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 7 “ |
| Product Width | 4.4 “ |
| Product Height | 5.4 “ |
| Pump Length | 7 “ |
| Product Weight | 7.5 lb |
| Product Weight w/ Pack | 8 lb |
| Carton Length | 8.63 “ |
| Carton Width | 6.25 “ |
| Carton Height | 6.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
Send us your model number and we will confirm fit, price, and availability.
