JPC Series

Stock: Call for availability

Technical support: Yes

Shipping time: Same day

Shipping: USA and Canada

Talk to a pump specialist now: (303) 699-7845

Get a Fast Quote from a Pump Specialist

Click to rate this post!

[Total: 0 Average: 0]

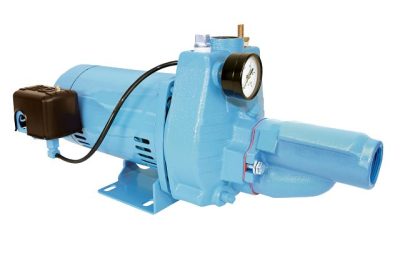

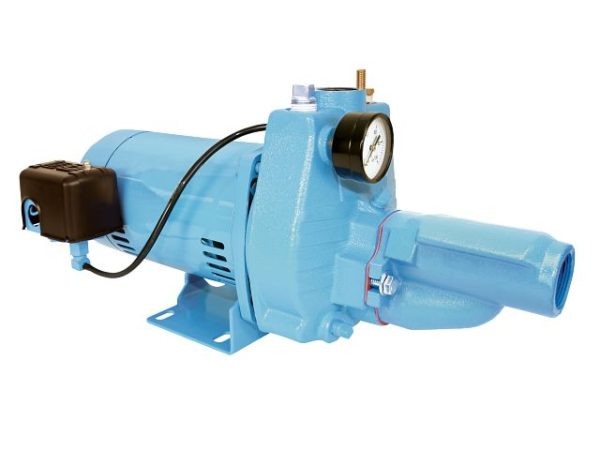

The JPC Series of convertible jet pumps is an excellent pumping solution for supplying pressurized fresh water to rural homes, farms, and cabins in installations where the vertical distance from the pump to the pumping water level does not exceed 90 feet (27.4 meters).

Features & Benefits

1/2 to 1 hp motor
Cast iron casing and seal plate for durability and long life
Stainless steel motor shaft and dual ball bearings
Brass flow control valve
1-1/4″ (31.7 mm) suction
1″ NPT (25.4 mm) discharge

Overview

Featuring a JPC Series convertible jet pump, this system is built for high performance with its condensation-reducing design. The heavy-duty steel constructed tank has 8.5 capacity with a butyl rubber diaphragm system that isolates the air charge from the water system. The system also includes an injector that can be attached to the pump for shallow well performance.

Specifications

Horsepower	1/2, 3/4, or 1 hp
Pressure	Up to 87 PSI
Discharge	1″ NPT (25.4 mm)
Impeller	Thermoplastic
Electrical	115 V or 230 V

Order Information

JPC Series Convertible Jet Pump

Item	Model	HP	Volts	Max PSIG
558281	JPC-050-C	1/2 hp	115 VAC / 230 VAC	85 PSI
558282	JPC-075-C	3/4 hp	115 VAC / 230 VAC	86 PSI
558283	JPC-100-C	1 hp	115 VAC / 230 VAC	87 PSI
