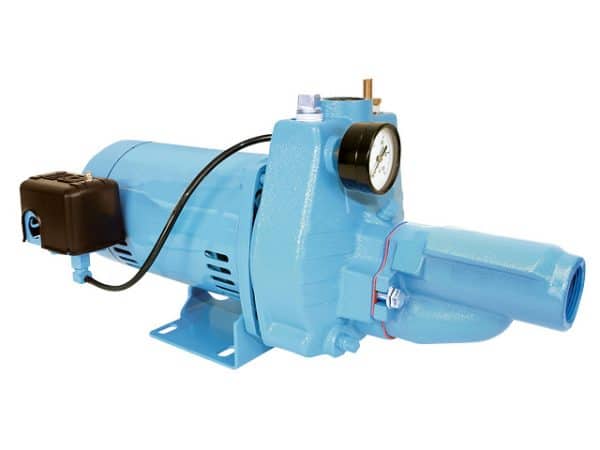

This 3/4 HP Cast Iron Convertible Jet Pump with injector kit is ideal for use in pumping at depths of 25′ or less and for deep wells 25’ to 90’. With 115/230 volt heavy-duty century motor and voltage selector for simple connection to existing power source, the JPC-075-C is built to deliver.
| Item: | 558282 |
| Model: | JPC-075-C |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Starting | 25 A |
| Volts | 115 VAC / 230 VAC |
| Motor Type | Surface |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Max PSIG | 86 PSI |
| Switch Type | Adjustable Pressure Switch |
| Motor Enclosure Type | ODP |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Closed |
| Impeller Material | Glass Filled Thermoplastic |
| Motor Shaft End – Material | Stainless Steel |
| Fasteners Material | Plated Steel |
| Seal Material | Phenolic Ceramic Buna |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1 “ |
| Suction | 1.25 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 19.36 “ |
| Product Width | 9 “ |
| Product Height | 10 “ |
| Pump Length | 19.36 “ |
| Product Weight | 40.6 lb |
| Product Weight w/ Pack | 37 lb |
| Carton Length | 19.88 “ |
| Carton Width | 11 “ |
| Carton Height | 12.25 “ |
Other |
|
| Accessories Included | Injector kit included for both shallow and deep well applications |
| Minimum Order Quantity | 1 |
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 24 Months |
