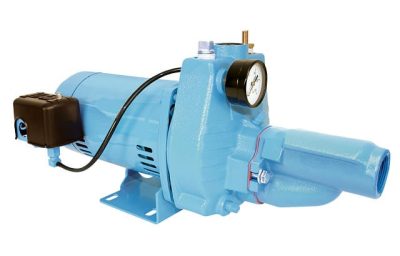

Little Giant JPC-100-C Is For Supplying Fresh Water To Rural Homes, Farms And Cabins. Installs Where Vertical Distance To Pumping Water Level Does Not Exceed 90 Feet. Constructed of cast iron for durablity and long life, it features 1 Horse Power motor and 20.2 Gallon Per Minute At 5 Foot Rise 164 Foot Max Height capabilities.
| Item: | 558283 |
| Model: | JPC-100-C |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Starting | 33.3 A |
| Volts | 115 VAC / 230 VAC |
| Motor Type | Surface |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Max PSIG | 87 PSI |
| Switch Type | Adjustable Pressure Switch |
| Motor Enclosure Type | ODP |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Closed |
| Impeller Material | Glass Filled Thermoplastic |
| Motor Shaft End – Material | Stainless Steel |
| Fasteners Material | Plated Steel |
| Seal Material | Phenolic Ceramic Buna |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1 “ |
| Suction | 1.25 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 20.58 “ |
| Product Width | 9 “ |
| Product Height | 10 “ |
| Pump Length | 20.58 “ |
| Product Weight | 46 lb |
| Product Weight w/ Pack | 38 lb |
| Carton Length | 20.19 “ |
| Carton Width | 11.31 “ |
| Carton Height | 12.88 “ |
Other |
|
| Accessories Included | Injector kit included for both shallow and deep well applications |
| Minimum Order Quantity | 1 |
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 24 Months |
