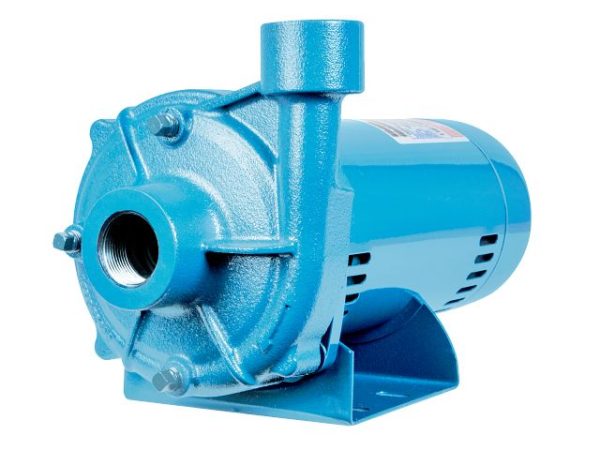

LGDR Series Close-Coupled Centrifugal Pump

Stock: Call for availability

Technical support: Yes

Shipping time: Same day

Shipping: USA and Canada

Talk to a pump specialist now: (303) 699-7845

Get a Fast Quote from a Pump Specialist

Click to rate this post!

[Total: 1 Average: 5]

The robust construction and design of the LGDR Series of close-coupled, end-suction centrifugal pumps enable handling a wide array of applications intended for water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and other general service pumping applications. Ideal for industrial and commercial applications.

Features & Benefits

1/2 hp to 2 hp motor options
Robust cast iron construction
Enclosed impeller design
Close-coupled
Versatile fluid handling capabilities
120° F (48° C) maximum fluid temperature handling
Easy access for maintenance

Overview

The rugged LGDR Series provides dependability and high-performance from a close-coupled, end centrifugal pump. This versatile pump is available in dissimilar materials of construction for various fluid handling applications. The pump impeller design is enclosed for high-efficiency while its back pull-out design provides easy access to internal parts without disturbing the plumbing.

Specifications

Horsepower	1/2 – 2 hp
Discharge	1″ NPT (25.4 mm) or 1-1/4″ NPT (31.75)
Impeller	Stainless steel or Polyphenylene Ether Polystyrene Modified
Electrical	115 V or 230 V

LGDRS1-CP Performance

LGDRS2-CS Performance

Order Information

LGDR Series End Suction Centrifugal Pump

Item	Model	HP	Volts
558255	LGDR1S05-CP	1/2 hp	115 VAC / 230 VAC
558256	LGDR1S07-CP	3/4 hp	115 VAC / 230 VAC
558257	LGDR1S1-CP	1 hp	115 VAC / 230 VAC
558258	LGDR2S1-CS	1 hp	115 VAC / 230 VAC
558259	LGDR2S15-CS	1.5 hp	115 VAC / 230 VAC
558260	LGDR2S2-CS	2 hp	230 VAC
