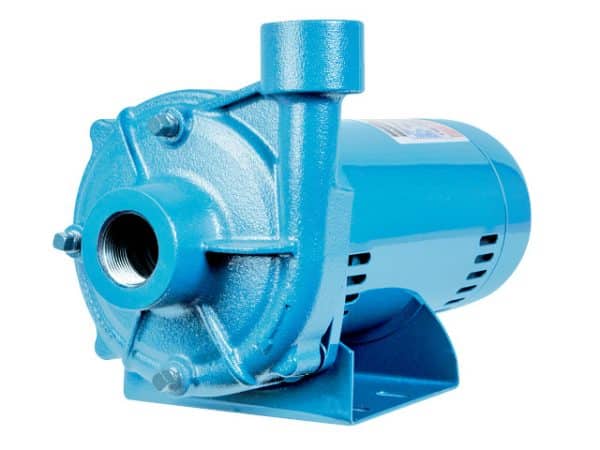

LGDR2S1-CS, 1 HP 1 PH 115/230V ODP Close-Coupled, End Suction Centrifugal
| Item: | 558258 |
| Model: | LGDR2S1-CS |
LGDR2S1-CS, 1 HP 1 PH 115/230V ODP Close-Coupled, End Suction Centrifugal
| Item: | 558258 |
| Model: | LGDR2S1-CS |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Motor Type | Surface |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 90 gpm / 5400 gph |
| Shut Off Height – 60Hz | 77 ft |
| Stages | 1 |
| Motor Enclosure Type | ODP |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Cast Iron |
| Impeller Type | Closed |
| Impeller Material | Stainless Steel |
| Motor Shaft End – Material | Stainless Steel |
| Check Valve | No |
| Fasteners Material | Plated Steel |
| Seal Material | Phenolic/Ceramic x Buna-N |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.25 “ |
| Suction | 1.5 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 15.48 “ |
| Product Width | 8.76 “ |
| Product Height | 8.94 “ |
| Pump Length | 15.48 “ |
| Product Weight | 46 lb |
| Carton Length | 19.88 “ |
| Carton Width | 11 “ |
| Carton Height | 12.25 “ |
Other |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 24 Months |
