For commercial, industrial, and home use worldwide, where liquid must be transferred or recirculated, Little Giant’s NK-1 Series small oil-filled submersible pump is the solution. Applications for this small oil-filled submersible pump include aquariums, swimming pools, water displays, ice makers, air conditioners, boat bailing, fuel oil transfer, circulating water for welding and pipe threading machines, pumping mild chemicals such as soap solutions, acids, plating solutions, and fertilizers.

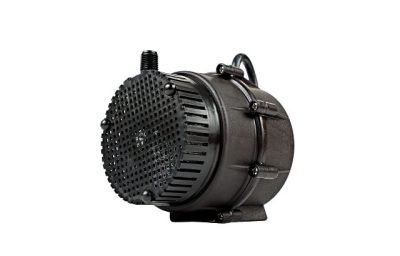

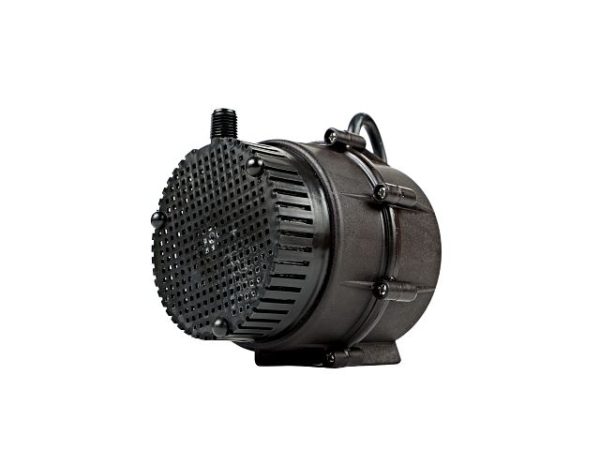

The NK-1 Series is a portable small submersible pump constructed with a 1/150 oil-filled motor with nylon housing, cover, and volute. This small submersible pump is also equipped with a Fluoroelastomer (FKM) shaft seal used in demanding high temperature and aggressive fluid environments to provide added heat resistance.
| Capacity | 210 gph @ 1′ |
| Shut Off | 10.2′ (3.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.1 A |
| Head | GPH (LPH) |
| 1′ | 210 (794.9) |
| 3′ | 180 (681.4) |
| 5′ | 150 (567.8) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 526003 | NK-1 | 115 VAC | 3.5 gpm / 210 gph | 10.2 ft | 6 ft |
