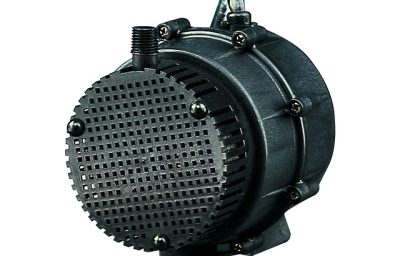

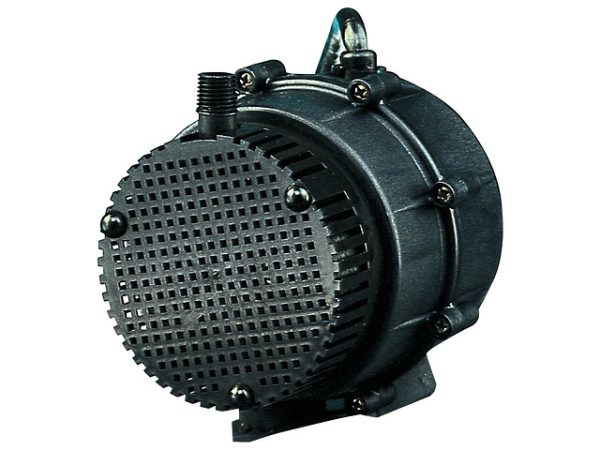

This Submersible Centrifugal Pump 1/150 HP pump is for commercial, industrial, and home use worldwide where liquid must be transferred or recirculated. Applications include aquariums, swimming pools, water displays, ice makers, air conditioners, boat bailing, fuel oil transfer, circulating water for welding and pipe threading machines, pumping mild chemicals such as soap solutions, acids, plating solutions and fertilizers.
| Item: | 526003 |
| Model: | NK-1 |
Ratings |
|
| HP | 1/150 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.1 A |
| Full Load Watts | 70 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 3.5 gpm / 210 gph |
| Minimum Flow Rate – 60Hz | 0.17 gpm / 10 gph |
| Shut-Off | 10.2 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 10.2 ft |
| Max PSIG – 60Hz | 4.4 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Intake Screen Material | Polypropylene |
| Seal Material | Viton |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 5 “ |
| Product Width | 4.75 “ |
| Product Height | 4.6 “ |
| Pump Length | 5 “ |
| Product Weight | 3 lb |
| Product Weight w/ Pack | 3.67 lb |
| Carton Length | 7.25 “ |
| Carton Width | 6.6 “ |
| Carton Height | 5 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
