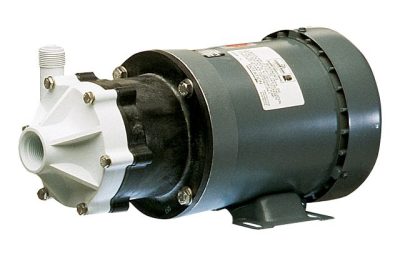

TE-6-MD-SC Series Magnetic Drive Pump
Click to rate this post!
[Total: 0 Average: 0]
The TE-6-MD-SC includes a 1/2 hp motor that’s totally enclosed and fan-cooled to protect it from the outside environments when handling mildly corrosive solutions. It’s designed to withstand fluid temperature to 135 °F (57 °C) and ambient air temperature to 77 °F (25 °C).
Features & Benefits
- 1/2 hp TEFC motor
- Glass-filled polyphenylene sulfide backplate
- Glass-filled polypropylene volute
- Conduit box
- 1.1 specific gravity
- Nitrile O-ring
- Ceramic thrust washers and shaft
Overview
Constructed with materials to handle semi-corrosive solutions and solvents, the TE-6-MD-SC’s volute and impeller are glass-filled polypropylene for excellent chemical resistance. Handling 38 gallons per minute at 5′ head, the pump has a PSI of 22. This series is available in either 115 or 230 volt options.
Specifications
| Capacity | 38 gpm @ 5′ |
| Shut Off | 51′ (15.5 m) |
| Max. Liquid Temp. | 150 °F (66 °C) |
| Discharge | 3/4″ MNPT (19 mm) |
| Impeller | Glass-filled polypropylene w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 11.6/9.4 A 230 V, 50/60 Hz, 5.8/4.7 A |
Performance
115 or 230 V, 60 Hz
| Head | GPM (LPM) |
| 5′ | 38 (143.8) |
| 10′ | 36.7 (138.9) |
| 20′ | 31.7 (120) |
| 30′ | 28.3 (107.1) |
| 40′ | 21.7 (82.1) |
Order Information

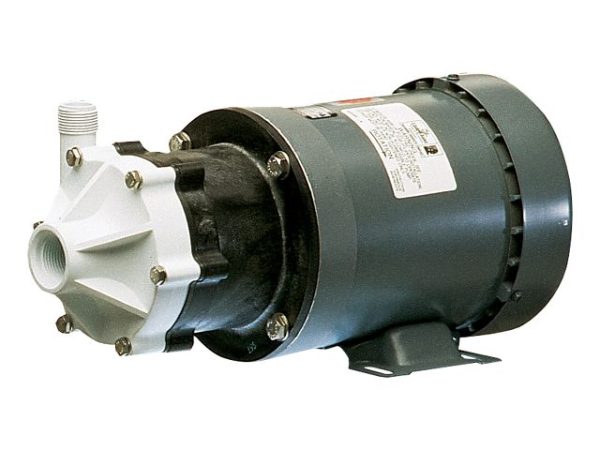

TE-6-MD-SC Series Chemical Transfer Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft |
|---|---|---|---|---|---|
| 586504 | TE-6-MD-SC | 115 VAC / 230 VAC | 38 gpm / 2280 gph | 51 ft |
