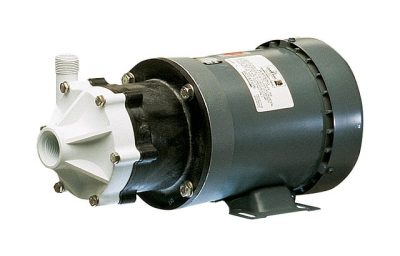

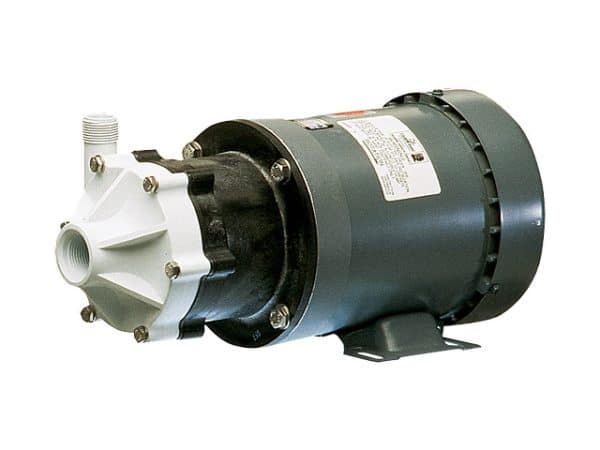

Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft. power cord and 3-prong molded plug.
| Item: | 586504 |
| Model: | TE-6-MD-SC |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 9.4 A |
| Full Load Watts | 835 W |
| Volts | 115 VAC / 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 38 gpm / 2280 gph |
| Minimum Flow Rate – 60Hz | 2 gpm / 120 gph |
| Shut-Off | 51 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 51 ft |
| Max PSIG – 60Hz | 22 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
| Discharge Material | Thermoplastic |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 15.3 “ |
| Product Width | 8.8 “ |
| Product Height | 7 “ |
| Pump Length | 16.3 “ |
| Product Weight | 31 lb |
| Product Weight w/ Pack | 32.45 lb |
| Carton Length | 20.13 “ |
| Carton Width | 10.63 “ |
| Carton Height | 8.38 “ |
Other |
|
| Standard Warranty | 12 Months |
