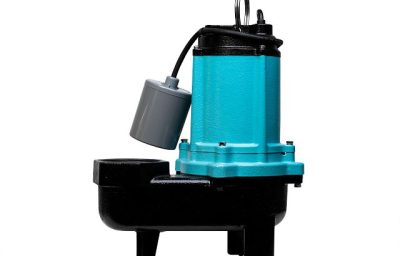

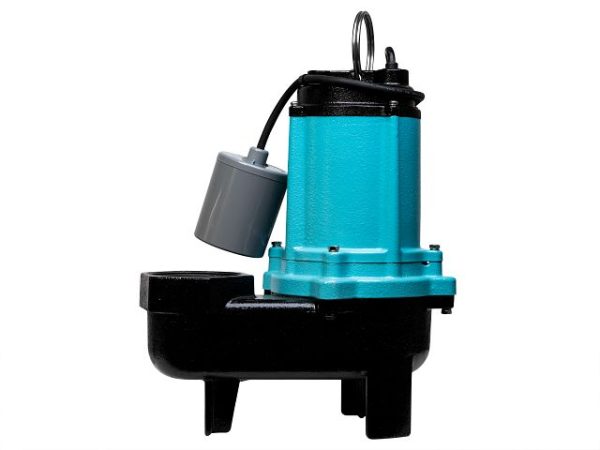

The 10SC Series sewage pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long-term dependability. For use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic, or drainage areas.
Made for demanding effluent and sewage waste applications, the 10SC Series sewage pump is up to any task. Powered by a 1/2 horsepower permanent split capacitor motor, the 10SC is built for continuous duty and offers automatic or manual operations. Its energy-saving low amp draw delivers cost savings while also reducing wear and tear on the equipment. With the capability of handling up to 2′ solids, the 10SC Series sewage pump is a force to reckon with.
| Capacity | 120 gpm @ 5′ for 2″ discharge 130 gpm @ 5′ for 3″ discharge |
| Shut Off | 25′ (7.6 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 2″ FNPT (51 mm) and 3″ FNPT (76.2 mm) models |
| Impeller | Thermoplastic elastomer |
| Electrical | 115 V, 60 Hz, 11 A 208-230 V, 50/60 Hz, 11.5 A |
| Operation | Automatic or Manual |
| Head | 10SC – 2″ GPM (LPM) | 10SC – 3″ GPM (LPM) |
| 5′ | 120 (454) | 130 (492) |
| 10′ | 100 (379) | 110 (416) |
| 15′ | 80 (303) | 85 (322) |
| 20′ | 44 (167) | 46 (174.1) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 511432 | 10SC-CIM | 115 VAC | Manual | 20 ft | 2 “ |
| 511434 | 10SC-CIM | 115 VAC | Manual | 50 ft | 2 “ |
| 511435 | 10SC-CIM | 115 VAC | Manual | 20 ft | 3 “ |
| 511431 | 10SC-CIA-SFS | 115 VAC | Integral Snap-Action Float | 20 ft | 2 “ |
| 511433 | 10SC-CIA-RF | 115 VAC | Piggyback Mechanical Float | 20 ft | 2 “ |
| 511437 | 10SC-CIA-RF | 115 VAC | Piggyback Mechanical Float | 20 ft | 3 “ |
| 511438 | 10SC-CIM | 208 VAC / 230 VAC | Manual | 20 ft | 2 “ |
| 511436 | 10SC-CIM | 208 VAC / 230 VAC | Manual | 20 ft | 3 “ |
