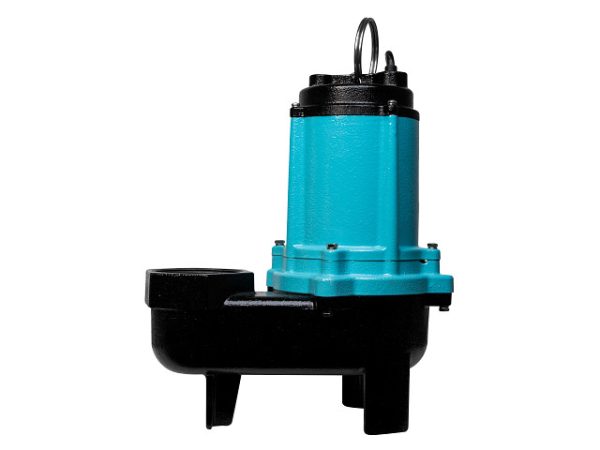

511435 – 10SC-CIM
| Item: | 511435 |
| Model: | 10SC-CIM |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 11.5 A |
| Amps – Starting | 18.5 A |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 130 gpm / 7800 gph |
| Shut-Off | 25 ft |
| Shut Off Height – 60Hz | 25 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Not Applicable |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 3 “ |
| Product Length | 11.7 “ |
| Product Width | 9.5 “ |
| Product Height | 14 “ |
| Pump Length | 11.72 “ |
| Product Weight | 42 lb |
| Product Weight w/ Pack | 43 lb |
| Carton Length | 12.4 “ |
| Carton Width | 10.25 “ |
| Carton Height | 17.5 “ |
Other |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
