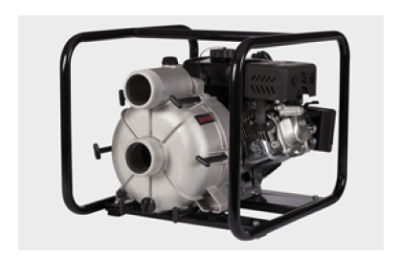

Red Lion 6RLAG-3LTT ALUMINUM TRASH PUMP
APPLICATIONS
Ideal for high volume water transfer and construction grade de-watering applications. Can handle liquid slurries containing sand, small rocks, and other debris less than 1-1/4″ in diameter.
FEATURES
| ITEM # | Description | KIT GROUP ID* | PART # |
|---|---|---|---|
| 1 | 6RLAG-3TT Adapter | A | 617120 |
| 2 | 6RLAG-3TT O-ring, 265mm ID | A | 617120 |
| B | 617121 | ||
| 3 | 6RLAG-3TT Mechanical seal | A | 617120 |
| B | 617121 | ||
| 4 | 6RLAG-3TT Impeller with washer | A | 617120 |
| B | 617121 | ||
| 4 | 6RLAG-3TT O-ring, 132mm | A | 617120 |
| B | 617121 | ||
| 6 | 6RLAG-3TT Casing volute | A | 617120 |
| 7 | 6RLAG-3TT Flapper valve | A | 617120 |
| B | 617121 | ||
| 8 | 6RLAG-3TT Pump casing | A | 617120 |
| 9 | 6RLAG-3TT O-ring, 25mm ID | A | 617120 |
| C | 617122 | ||
| 10 | 6RLAG-3TT Cap plug | A | 617120 |
| C | 617122 | ||
| 11 | 6RLAG-3TT T-bolt | A | 617120 |
| C | 617122 | ||
| 12 | 6RLAG-3TT Roll frame | D | 617123 |
| 13 | 6RLAG-3TT Air filter assembly | E | 617130 |
| 14 | 6RLAG-3TT Muffler assembly | F | 617131 |
| 15 | 6RLAG-3TT Fuel tank | G | 617132 |
| 16 | 6RLAG-3TT Recoil assembly | H | 617133 |
| 17 | 6RLAG-3TT Engine | J | 617136 |
| — | 6RLAG-3TT Accessory kit (not shown)** | — | 617134 |
| — | 6RLAG-3TT Air filter (not shown) | — | 617135 |
 |  |  |  | |
|---|---|---|---|---|
| 5RLAG-2 | 6RLAG-2ST | 6RLAG-3ST | 6RLAG-3TT | |
| Engine | OHV design, EPA-certified | |||
| Performance | 5.5 hP @ 3400 RPM | 6.0 hP @ 4000 RPM | ||
| Fuel type | Regular unleaded gasoline, 85 octane minimum* | |||
| Fuel capacity | 1.0 gallon(3.6 liters) | |||
| Oil type | See Figure 2 | |||
| Oil capacity | 0.63 quart (0.6 liter) | |||
| Spark plug type | F6TC or equivalent | |||
| Spark plug gap | 0.024 – 0.028 inch (0.6 – 0.7 mm) | |||
| Valve clearance, intake | 0.005 – 0.007 inch (0.13 – 0.17 mm) | |||
| Valve clearance, exhaust | 0.007 – 0.009 inch (0.18 – 0.22 mm) | |||
| Shut off | 92 ft (28 m) | 92 ft (28 m) | 85 ft (26 m) | 75 ft (23 m) |
| Suction head (max.) | 25 ft (7.5 m) | |||
| Intake size | 2″ NPT | 3″ NPT | ||
| Discharge size | 2″ NPT | 3″ NPT | ||
| Maximum flow | 150 gPM (567 LPM) | 264 gPM (1000 LPM) | 285 gPM (1079 LPM) | |
| Weight | 52.9 lb (24.0 kg) | 59.5 lb (27.0 kg) | 88.2 lb (40.0 kg) | |
| Height | 15.5 in (39.4 cm) | 18.0 in (45.7 cm) | 17.5 in (44.5 cm) | |
| Width | 14.5 in (36.8 cm) | 15.8 in (40.1 cm) | 17.3 in (43.9 cm) | |
| Length | 18.0 in (45.7 cm) | 20.6 in (57.3 cm) | 21.4 in (54.4 cm) | |
| Model | Item Number | UPC | cc | Intake | Discharge | Suction Lift | Max Height | Max Flow GPM | Fuel Tank (qt) | Engine |
|---|---|---|---|---|---|---|---|---|---|---|
| 6RLAG-3TT | 617055 | 0 10121 13753 0 | 208cc | 3″ MNPT | 3″ MNPT | 25′ | 75 | 285 gpm | 3.8 | 4 Stroke OHV (208cc) |
| Model | Length | Width | Height | Weight(lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty.per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| 6RLAG-3TT | 22″ | 19″ | 19″ | 83 | 4.6 | 8 | 4 | 2 |
