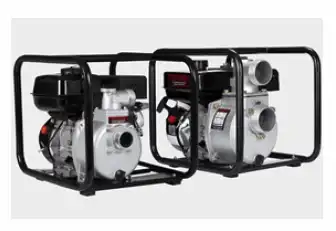

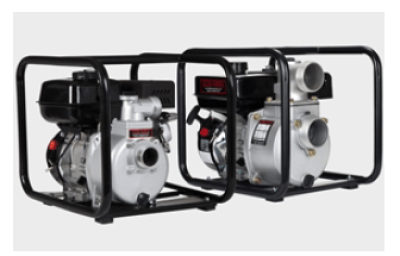

6RLAG-3ST – ALUMINUM SEMI TRASH PUMPS
REPLACED BY:
Red Lion 6RLAG-2LST – ALUMINUM SEMI TRASH PUMPS.
APPLICATIONS
Ideal for high volume transfer and de-watering. Can handle liquid slurries including sand, pebbles, and suspended solids less than 1/2″ in diameter.
FEATURES
- Durable cast iron semi-open style impeller
- Lightweight aluminum outer casing: includes heavy-duty roll frame
- Wear resistant silicon carbide mechanical seal
- Self-priming to 25′ of suction lift
- Built-in check valve
- EPA certified
| ITEM # | Description | KIT GROUP ID* | PART # |
|---|---|---|---|
1 | 6RLAG-3ST Adapter | A | 617115 |
2 | 6RLAG-3ST O-ring, 218mm ID | A | 617115 |
B | 617116 | ||
3 | 6RLAG-3ST Mechanical seal | A | 617115 |
B | 617116 | ||
4 | 6RLAG-3ST Impeller with washer | A | 617115 |
B | 617116 | ||
5 | 6RLAG-3ST Casing volute | A | 617115 |
6 | 6RLAG-3ST Volute packing | A | 617115 |
B | 617116 | ||
7 | 6RLAG-3ST Pump casing | A | 617115 |
8 | 6RLAG-3ST Gasket | A | 617115 |
C | 617117 | ||
9 | 6RLAG-3ST Discharge flange | A | 617115 |
C | 617112 | ||
10 | 6RLAG-3ST Flapper | A | 617115 |
D | 617118 | ||
11 | 6RLAG-3ST Suction flange | A | 617115 |
D | 617118 | ||
12 | 6RLAG-3ST O-ring, 25mm ID | A | 617115 |
C | 617117 | ||
D | 617118 | ||
13 | 6RLAG-3ST Cap plug | A | 617115 |
C | 617117 | ||
D | 617118 | ||
14 | 6RLAG-3ST Roll frame | E | 617119 |
15 | 6RLAG-3ST Air filter assembly | F | 617130 |
16 | 6RLAG-3ST Muffler assembly | G | 617131 |
17 | 6RLAG-3ST Fuel tank | H | 617132 |
18 | 6RLAG-3ST Recoil assembly | J | 617133 |
19 | 6RLAG-3ST Engine | L | 617136 |
— | 6RLAG-3ST Accessory kit (not shown)** | — | 617134 |
— | 6RLAG-3ST Air filter (not shown) | — | 617135 |
 |  |  |  | |
|---|---|---|---|---|
| 5RLAG-2 | 6RLAG-2ST | 6RLAG-3ST | 6RLAG-3TT | |
| Engine | OHV design, EPA-certified | |||
| Performance | 5.5 hP @ 3400 RPM | 6.0 hP @ 4000 RPM | ||
| Fuel type | Regular unleaded gasoline, 85 octane minimum* | |||
| Fuel capacity | 1.0 gallon(3.6 liters) | |||
| Oil type | See Figure 2 | |||
| Oil capacity | 0.63 quart (0.6 liter) | |||
| Spark plug type | F6TC or equivalent | |||
| Spark plug gap | 0.024 – 0.028 inch (0.6 – 0.7 mm) | |||
| Valve clearance, intake | 0.005 – 0.007 inch (0.13 – 0.17 mm) | |||
| Valve clearance, exhaust | 0.007 – 0.009 inch (0.18 – 0.22 mm) | |||
| Shut off | 92 ft (28 m) | 92 ft (28 m) | 85 ft (26 m) | 75 ft (23 m) |
| Suction head (max.) | 25 ft (7.5 m) | |||
| Intake size | 2″ NPT | 3″ NPT | ||
| Discharge size | 2″ NPT | 3″ NPT | ||
| Maximum flow | 150 gPM (567 LPM) | 264 gPM (1000 LPM) | 285 gPM (1079 LPM) | |
| Weight | 52.9 lb (24.0 kg) | 59.5 lb (27.0 kg) | 88.2 lb (40.0 kg) | |
| Height | 15.5 in (39.4 cm) | 18.0 in (45.7 cm) | 17.5 in (44.5 cm) | |
| Width | 14.5 in (36.8 cm) | 15.8 in (40.1 cm) | 17.3 in (43.9 cm) | |
| Length | 18.0 in (45.7 cm) | 20.6 in (57.3 cm) | 21.4 in (54.4 cm) | |
*Use unleaded gasoline containing no more than 10% ethanol (E10) or 5% methanol by volume. The use of fuels with percentages of ethanol/methanol greater than indicated may cause starting and/or performance problems, and may damage metal, rubber, and plastic parts of the fuel system. Engine damage and/or performance problems resulting from the use of fuels with percentages of ethanol/methanol greater than indicated are not covered under warranty.
| Model | Warranty | Item Number | UPC | cc | Intake | Discharge | Suction Lift | Max Head | Max Flow GPM | Fuel Tank (qt) | Engine |
|---|---|---|---|---|---|---|---|---|---|---|---|
6RLAG-3ST | 1 Year Silver | 617054 | 0 10121 13752 3 | 208cc | 3″ MNPT | 3″ MNPT | 25′ | 85 | 264 | 3.8 | 4 Stroke OHV (208cc) |
| Model | Length | Width | Height | Weight(lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty.per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
6RLAG-3ST | 16.25″ | 20.5″ | 17.5″ | 66 | 3.77 | 8 | 4 | 2 |
