A dependable companion in residential sewage and effluent wastewater transfer and dewatering, the 9SC Series sewage pump handles solids up to 2″ diameter. This general-purpose series offers easy installation and maintenance-free operation.

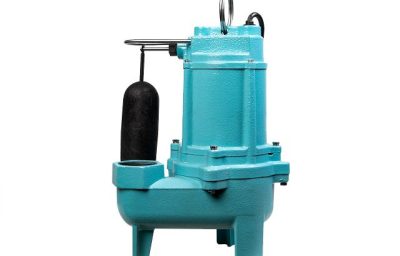

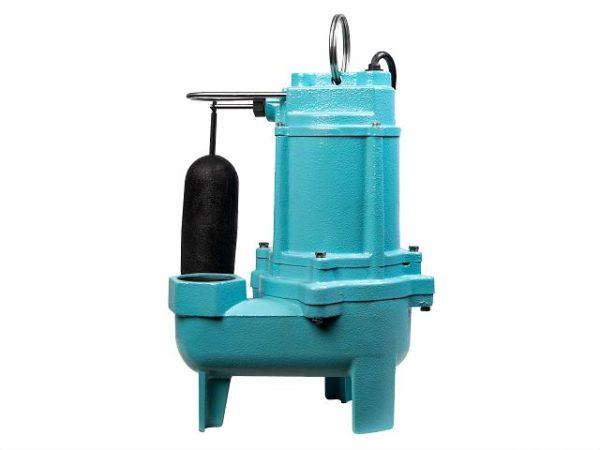

The 9SC Series sewage pump is an automatic submersible sewage pump with 4/10 horsepower and a 115-volt motor. Made of durable cast iron construction, the 9SC is available with multiple automatic switch options and 2″ discharge. Flow rate at 5′ of head is 100 GPM. The 9SC is a steady sewage and wastewater transfer performer. The 9SC Series sewage pump effectively tackles sewage and effluent wastewater transfer and dewatering applications.
| Capacity | 100 gpm @ 5′ |
| Shut Off | 20′ (6.1 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 2″ FNPT (51 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 8 A |
| Operation | Automatic or Manual |
| Head | GPM (LPM) |
| 5′ | 100 (379) |
| 10′ | 80 (303) |
| 15′ | 60 (227) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 509411 | 9SC-CIA-SFS | 115 VAC | Integral Snap-Action Float | 20 ft | 2 “ |
| 509412 | 9SC-CIA-RF | 115 VAC | Piggyback Mechanical Float | 20 ft | 2 “ |
| 509413 | 9SC-CIM | 115 VAC | Manual | 20 ft | 2 “ |
