DR Series Close-Coupled Centrifugal Pump

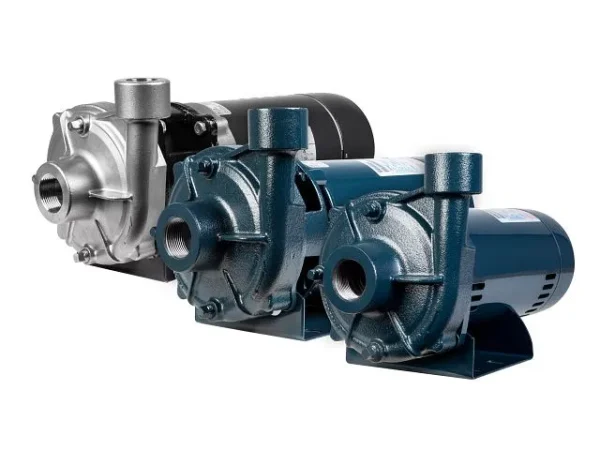

Franklin Electric DR Series Close Coupled Centrifugal Pump

The Franklin Electric DR Series Close Coupled Centrifugal Pump is designed to meet a wide range of pumping needs, with construction options for different materials and customizable motor drive choices. This pump is ideal for those who need flexibility and high-performance pumping solutions.

Key Features of the DR Series Close Coupled Centrifugal Pump

• Back Pull-Out Design: Allows access to internal parts without disturbing the plumbing setup.
• Versatile Volute Options: Standard cast iron volute, with stainless steel available for DR1 Series.
• Adjustable Volute Discharge: Can be rotated in 90° increments, with top vertical position set from the factory.
• Drain/Pressure Ports: Multiple 1/4” NPT ports simplify winterizing regardless of volute orientation.
• Efficient Impeller: Enclosed design improves performance; available in thermoplastic or stainless steel.
• Customizable Seals: Multiple mechanical seal materials support a variety of fluid types.
• Factory Wet Tested: Each unit undergoes wet testing to ensure top quality and performance.
• Flexible Installation: Can be installed horizontally or vertically (motor end up).

Motor and Rotation Details

• Compatible with NEMA standard motors.
• Pump end kits support both 56C and 56J motor constructions.
• Right-hand rotation (clockwise when viewed from the motor end).

Applications

• Water circulation
• Booster service
• Liquid transfer
• Spraying systems
• Jockey pump service
• General purpose pumping

Contact us for Franklin Electric DR Series Close Coupled Centrifugal Pump pricing or technical assistance.
