9714K215 – DR2J15-CS-K

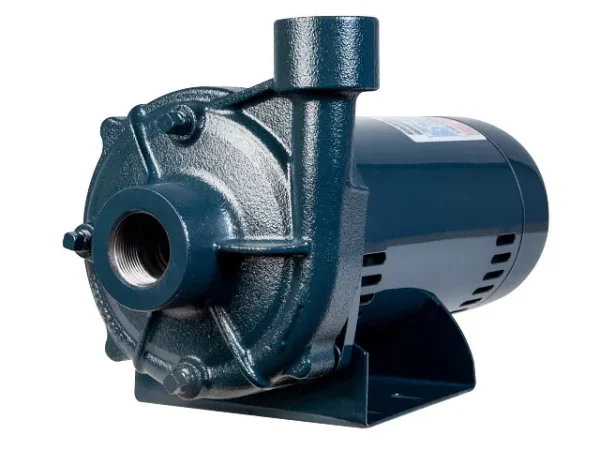

The Franklin Electric 9714K215–DR2J15-CS-K Centrifugal Pump End Kit from the robust DR1-DR2 Series is a 1.5 hp close-coupled, end suction centrifugal pump designed for versatile applications. Available in various construction materials, it features square flange, 56J threaded, and 56C keyed shaft compatibility. Ideal for customers supplying their own 56J or 56C motors to pair with this durable pump end kit.
| Item: | 9714K215 |
| Model: | DR2J15-CS-K |
Ratings |
|
| HP | 1.5 hp |
| Frequency | 60 Hz |
| Phases | Not Applicable |
| Volts | Not Applicable |
| S.F. | 1.3 |
| Maximum Flow Rate – 60 Hz | 90 gpm |
| Shut Off | 105 ft |
| Shut Off 60 Hz | 105 ft |
| Stages | 1 |
| Motor NEMA Frame Type | 56J Round Flange Thrd Shaft |
| Pump rpm – 60 Hz | 3600 |
Liquid |
|
| Maximum Fluid Temperature | 160 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Check Valve | No |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Suction Diameter | 1.5 “ |
| Suction | Threaded – FNPT |
| Product Weight | 24 lb |
| Pump Height | 8.94 “ |
| Pump Width | 8.76 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Ideal for applications requiring water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and general-purpose pumping. |
