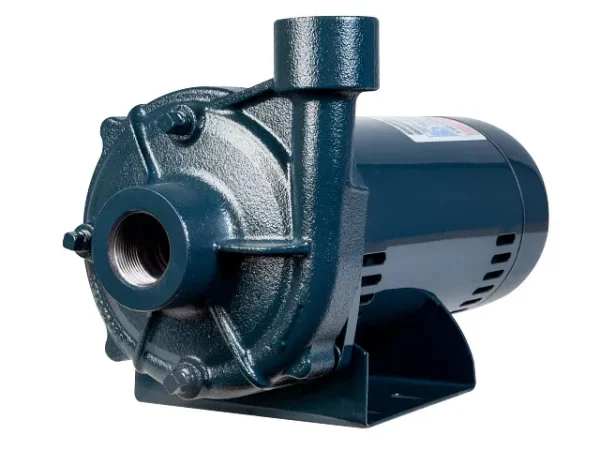

The Franklin Electric 9715K305–DR1C05-SS-K Centrifugal Pump End Kit from the robust DR1-DR2 Series is a 0.5 hp close-coupled, end suction centrifugal pump designed for versatile applications. Available in various construction materials, it features square flange, 56J threaded, and 56C keyed shaft compatibility. Ideal for customers supplying their own 56J or 56C motors to pair with this durable pump end kit.
| Item: | 9715K305 |
| Model: | DR1C05-SS-K |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phases | Not Applicable |
| Volts | Not Applicable |
| S.F. | 1.6 |
| Maximum Flow Rate – 60 Hz | 60 gpm |
| Shut Off | 77 ft |
| Shut Off 60 Hz | 84 ft |
| Stages | 1 |
| Motor NEMA Frame Type | 56C Round Flange Keyed Shaft |
| Pump rpm – 60 Hz | 3600 |
Liquid |
|
| Maximum Fluid Temperature | 180 °F |
Materials of Construction |
|
| Pump Body Material | Stainless Steel |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Check Valve | No |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Product Weight | 23 lb |
| Pump Height | 8.82 “ |
| Pump Width | 7.99 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Ideal for applications requiring water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and general-purpose pumping. |
