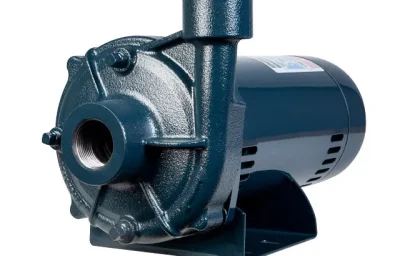

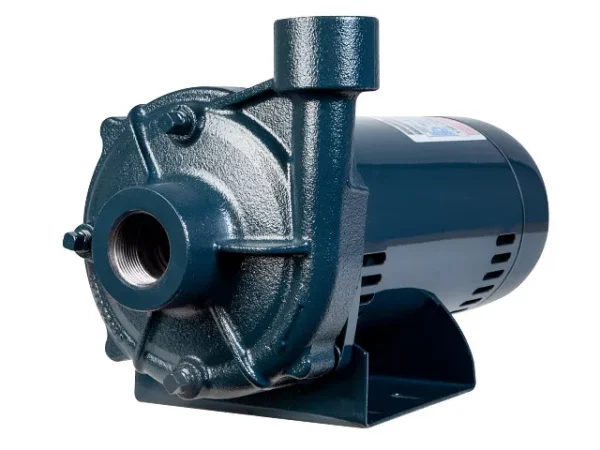

The Franklin Electric 97113007–DR1S07-CP-T Centrifugal Pump from the robust DR1-DR2 Series offers versatile construction materials to handle diverse applications. Featuring square flange, 56J threaded, and 56C keyed shaft motor options, it ensures durability and performance. Pump end kits are available for customers supplying their own 56J or 56C motors to pair with this close-coupled centrifugal pump.
| Item: | 97113007 |
| Model: | DR1S07-CP-T |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Maximum Flow Rate – 60 Hz | 60 gpm |
| Shut Off | 95 ft |
| Shut Off 60 Hz | 94 ft |
| Stages | 1 |
| Motor Enclosure | ODP |
| Pump rpm – 60 Hz | 3600 |
Liquid |
|
| Maximum Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | mPPE |
| Check Valve | No |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 13.73 “ |
| Product Weight | 38 lb |
| Pump Height | 8.82 “ |
| Pump Width | 7.99 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Ideal for applications requiring water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and general-purpose pumping. |
